Overhaul

FRONT BUMPER DISASSEMBLY/ASSEMBLY

Small Type

1. To disassemble the front bumper, remove the following parts:
a. Front fog lights (Vehicles with the front fog lights) Service and Repair

b. Headlight cleaner hose (Vehicles with the headlight cleaner) Service and Repair

c. Headlight cleaner nozzles (Vehicles with the headlight cleaner) Headlight Cleaner Nozzle Removal See Headlight Cleaner Nozzle Installation.)

d. Headlight cleaner actuator (Vehicles with the headlight cleaner) Service and Repair

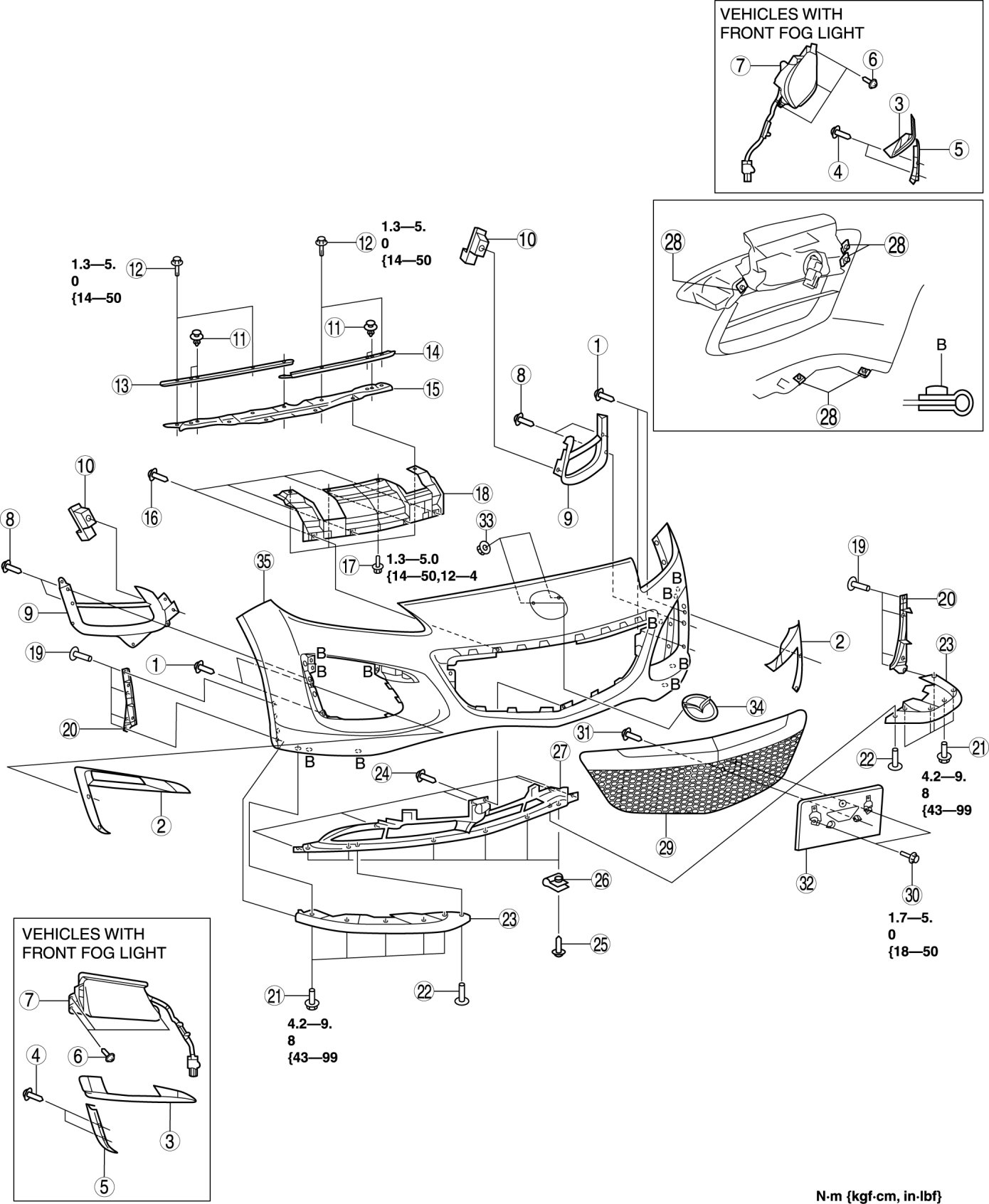

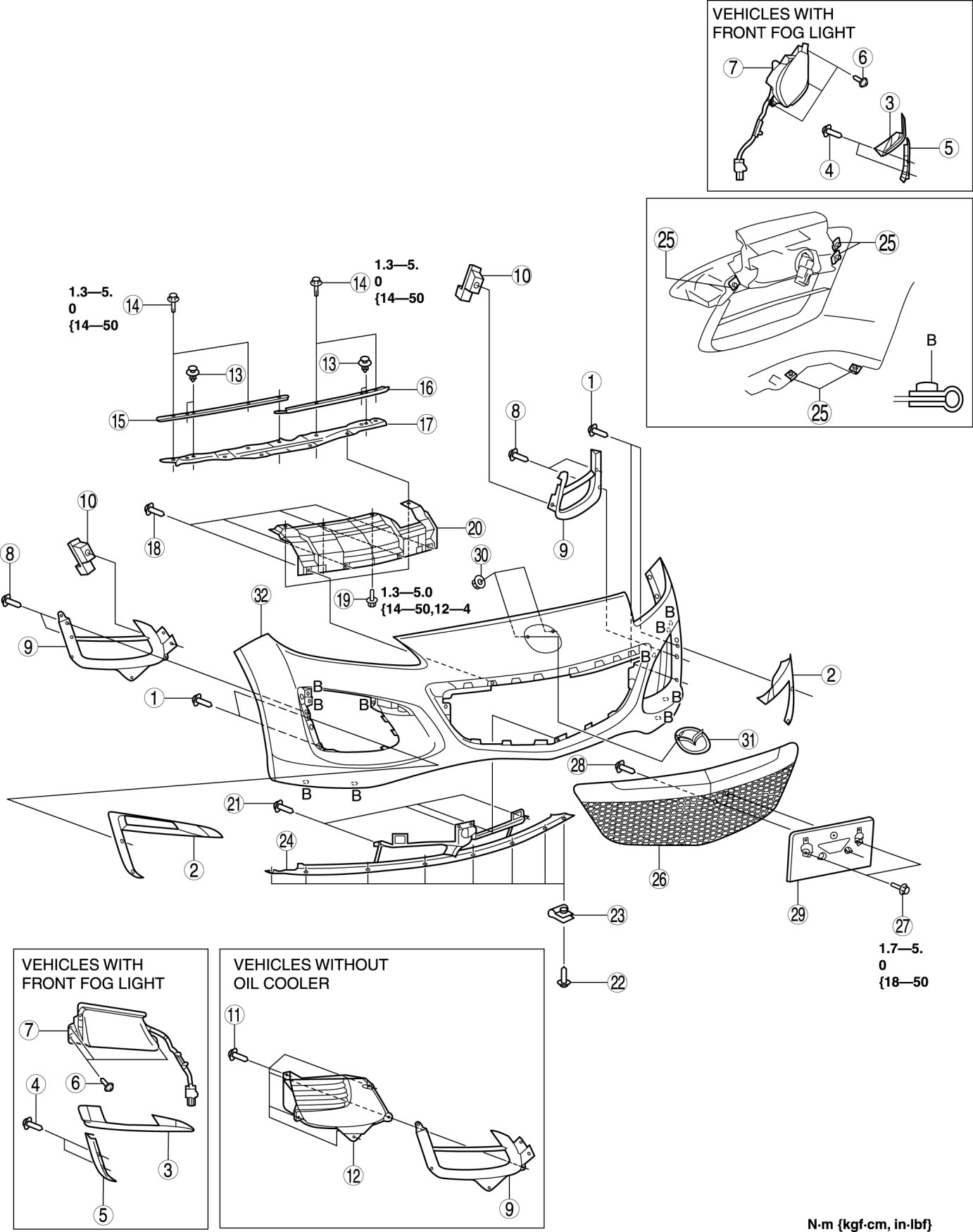

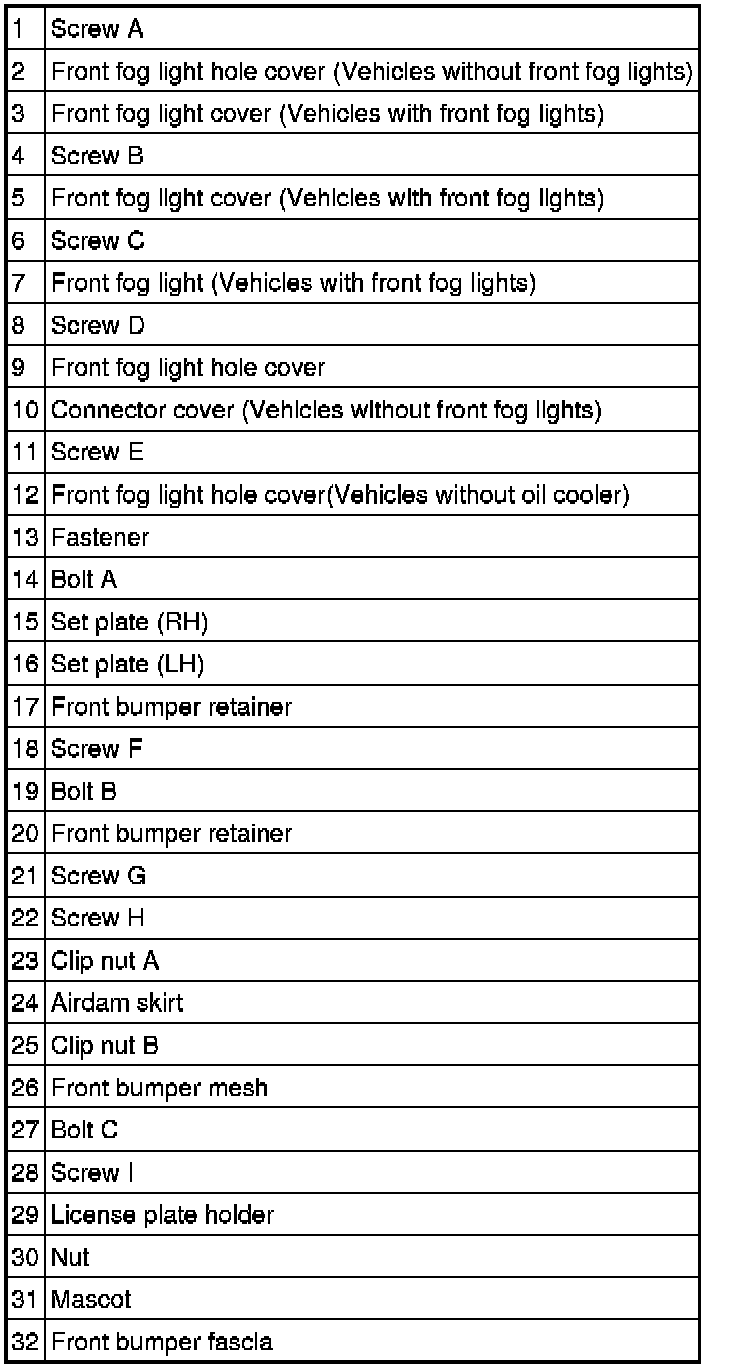

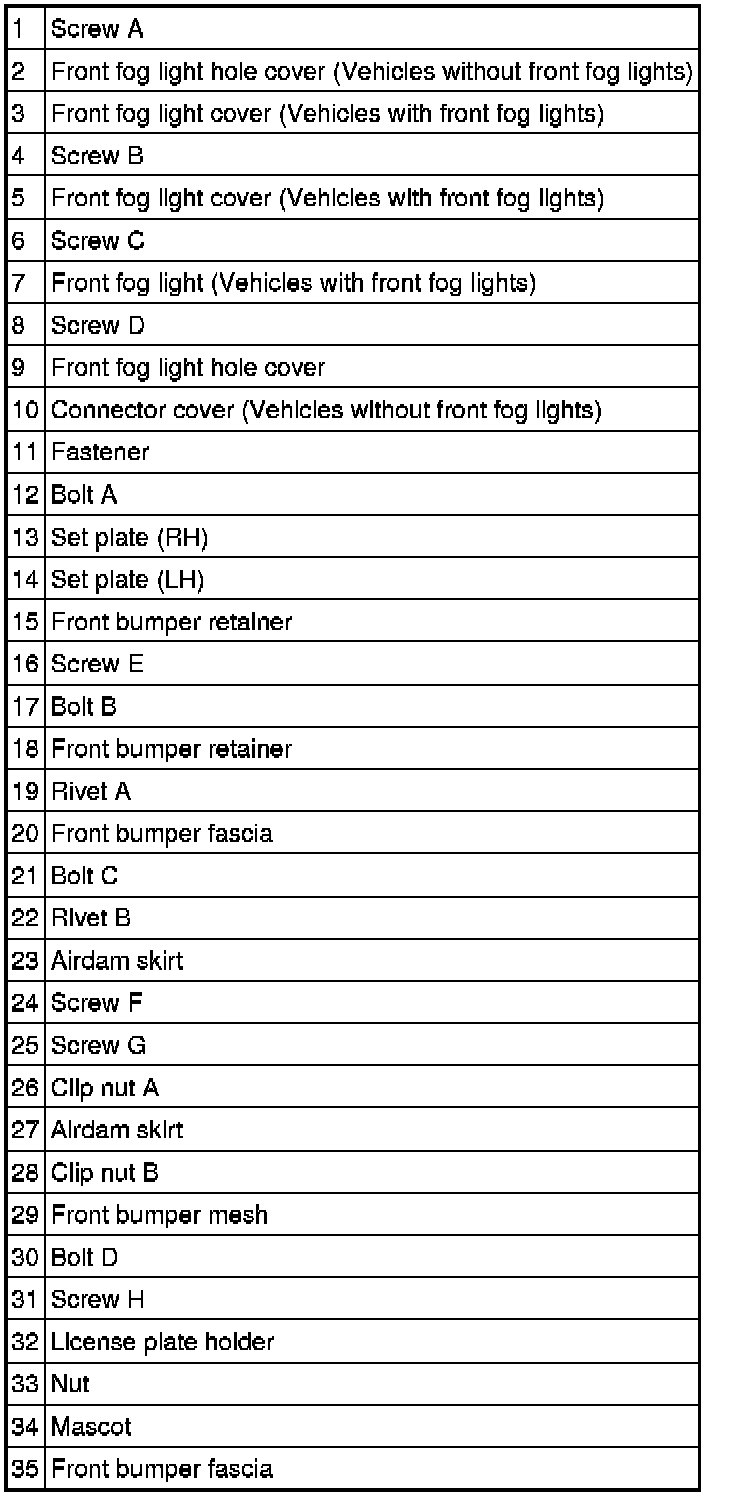

2. Disassemble in the order indicated in the table.

3. Assemble in the reverse order of disassembly.










Large Type

1. To disassemble the front bumper, remove the following parts:
a. Front fog lights (Vehicles with the front fog lights) Service and Repair

b. Headlight cleaner hose (Vehicles with the headlight cleaner) Service and Repair

c. Headlight cleaner nozzles (Vehicles with the headlight cleaner) Headlight Cleaner Nozzle Removal See Headlight Cleaner Nozzle Installation.)

d. Headlight cleaner actuator (Vehicles with the headlight cleaner) Service and Repair

2. Disassemble in the order indicated in the table.

3. Assemble in the reverse order of disassembly.
