Cowl Upper Plate
COWL UPPER PLATE REMOVAL
1. Drill the four weld locations indicated by (A), from the room side.
2. Remove the cowl upper plate.
CAUTION: Be careful not to damage the windshield when drilling the location indicated by (B).
COWL UPPER PLATE INSTALLATION

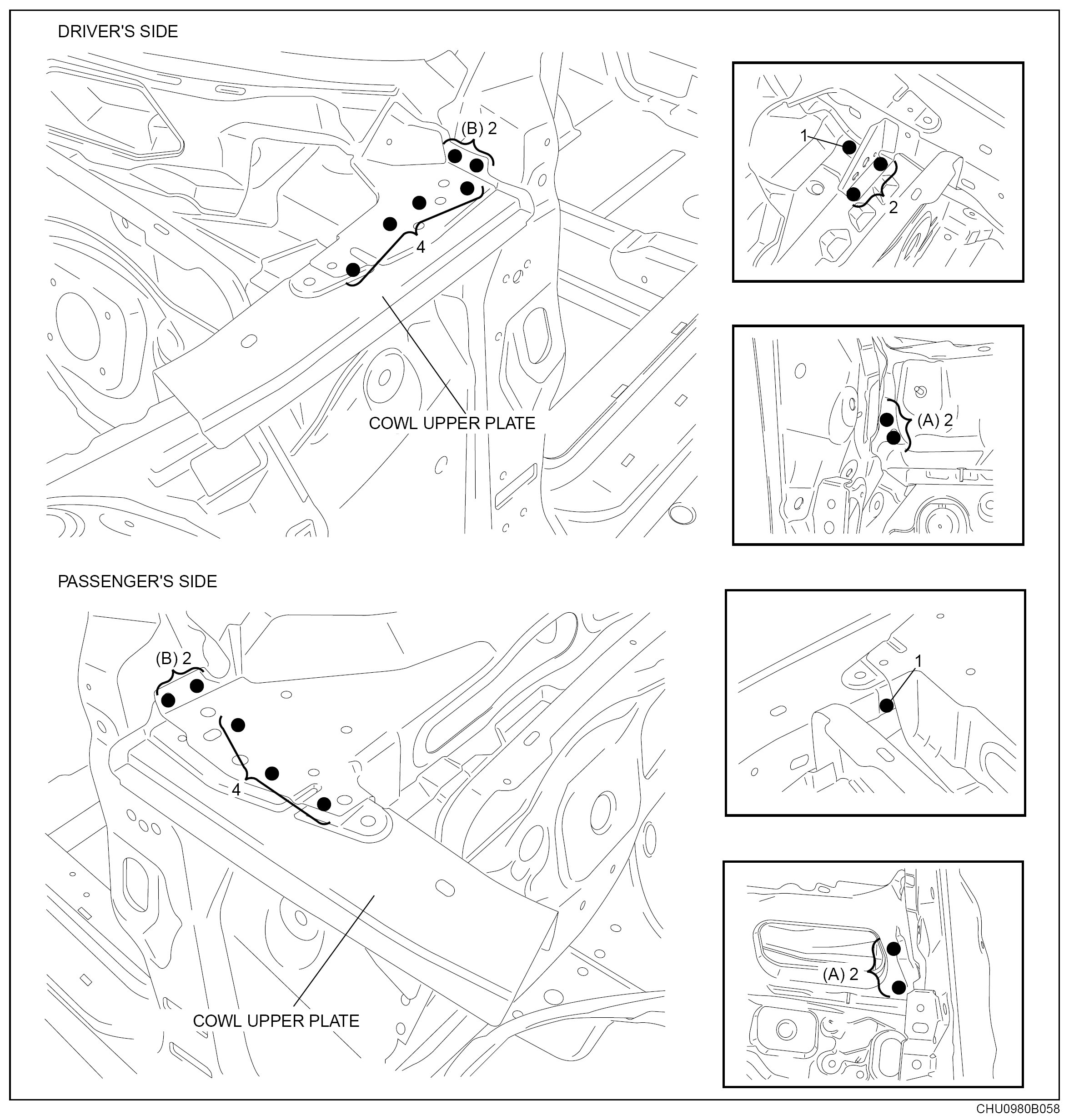

1. When installing new parts, position each part so that the section measurement aligns with the body dimension.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.
