Coil Antenna Removal/Installation

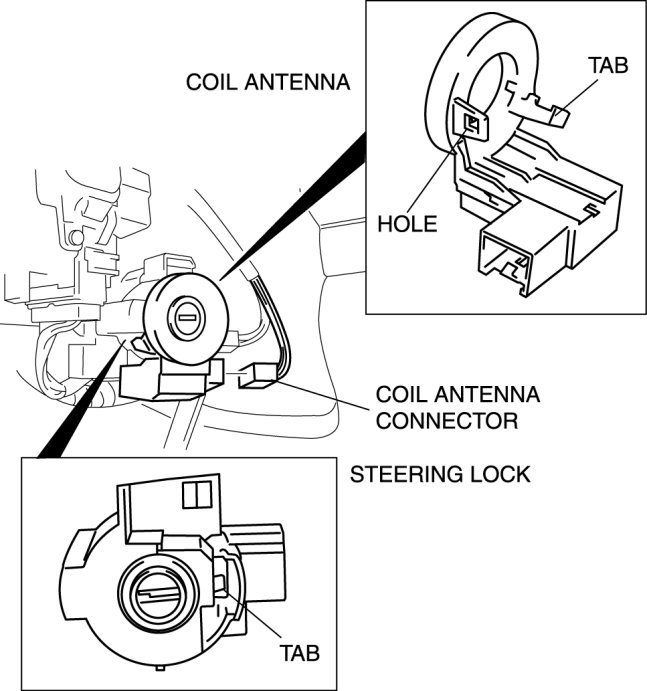

COIL ANTENNA REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the column cover.
Service and Repair 3.
Disconnect the coil antenna connector.
4.
Detach the steering lock tab from hole on the coil antenna.
5.
Detach the coil antenna tab from the steering lock and remove the coil antenna.
6.
Install in the reverse order of removal.
