Power Door Lock Actuator: Service and Repair




FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

1. Remove the following parts:
a. Inner garnish Inner Garnish Removal/Installation

b. Front door trim Front Door Trim Removal/Installation

c. Front door glass Service and Repair

d. Front door speaker Front Door Speaker Removal/Installation

e. Front door unit Front Door Unit Removal/Installation

2. Detach the cables from the inner handle and the door lock knob.

3. Detach the rods from the key cylinder and the front outer handle.

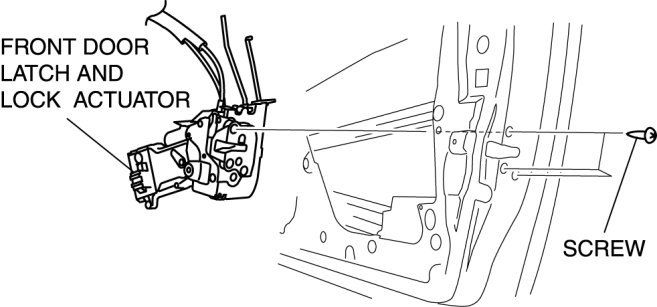

4. Remove the screws, then remove the front door latch and lock actuator.






5. Install in the reverse order of removal.
