Power Door Lock Actuator: Testing and Inspection

FRONT DOOR LOCK ACTUATOR INSPECTION

Door Lock Actuator

1. Disconnect the front door lock actuator connector.

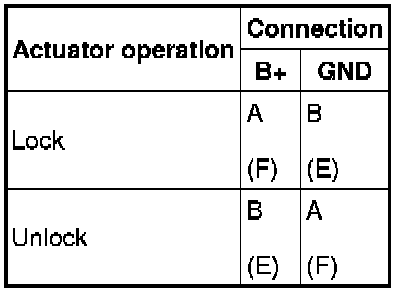

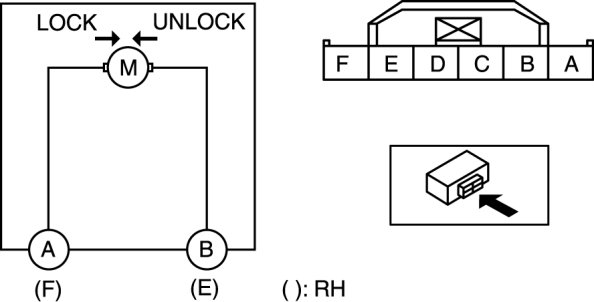

2. Apply battery positive voltage and connect the ground to the corresponding front door lock actuator terminals and inspect the front door lock actuator operation.






- If not as specified, replace the front door lock actuator.





( )
RH

Door Lock-link Switch

1. Disconnect the front door lock actuator connector.

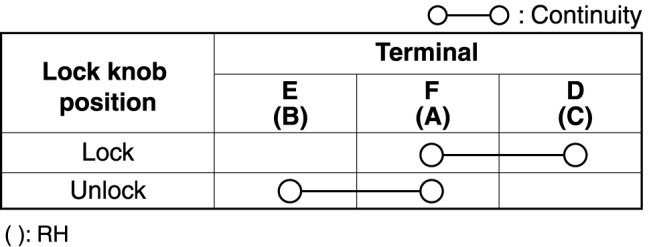

2. Inspect for continuity between the door lock-link switch terminals.






- If not as specified, replace the front door lock actuator.

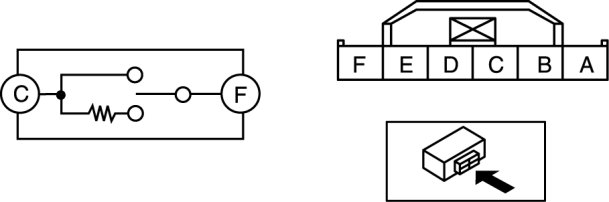

Door Key Cylinder Switch

1. Disconnect the front door lock actuator connector.

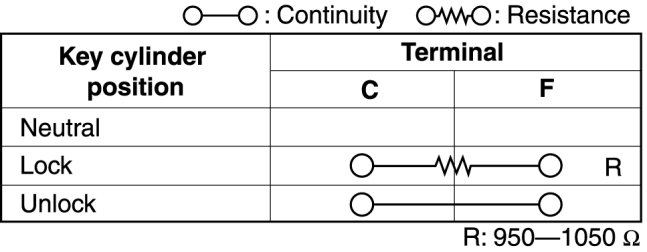

2. Inspect for continuity between the door lock-link switch terminals.






- If not as specified, replace the front door lock actuator.
