Home >> Mazda >> 2009 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Diagrams >> Components >> Front-Engine No.2

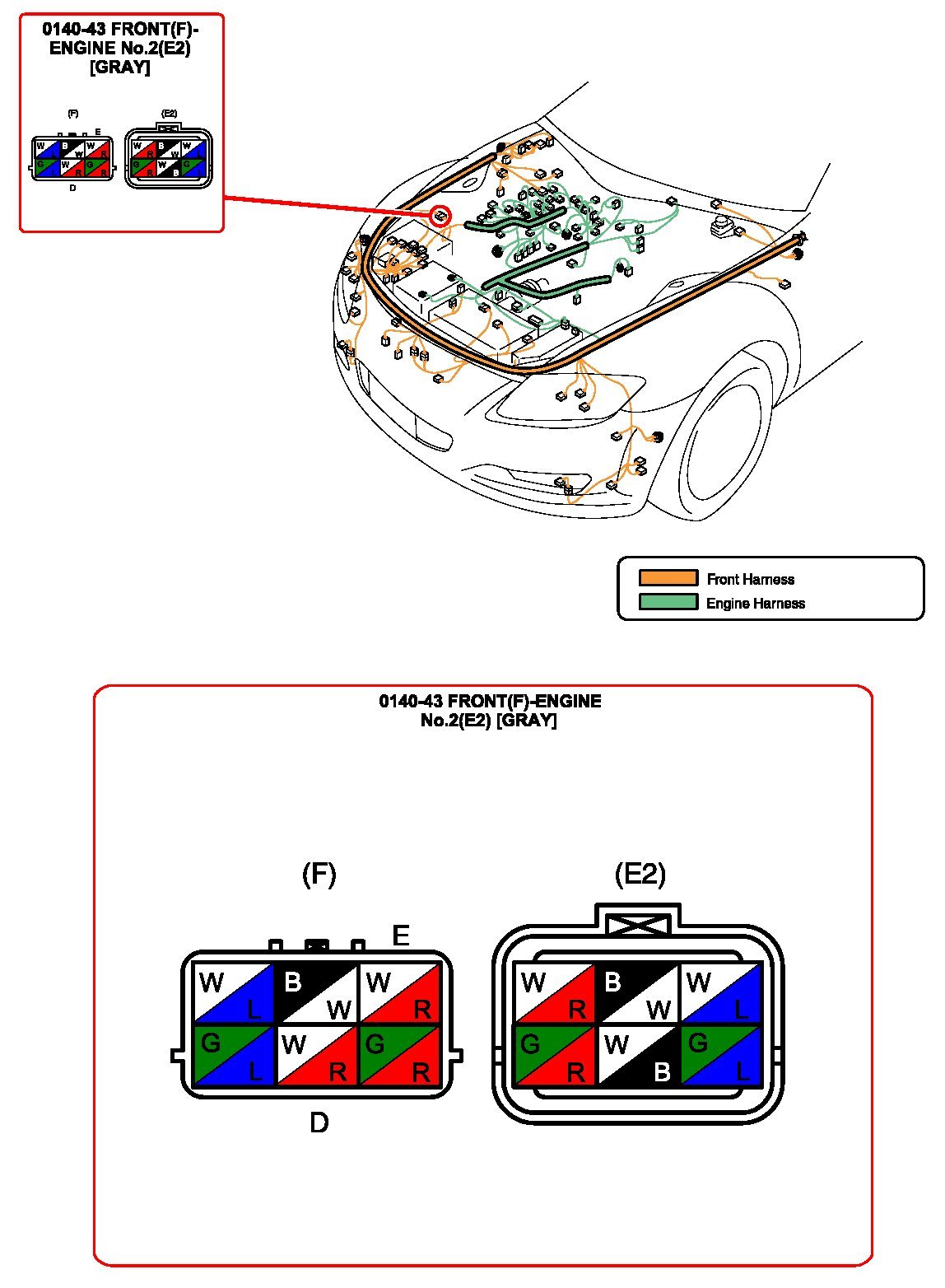

Front-Engine No.2

Front-Engine No.2:
