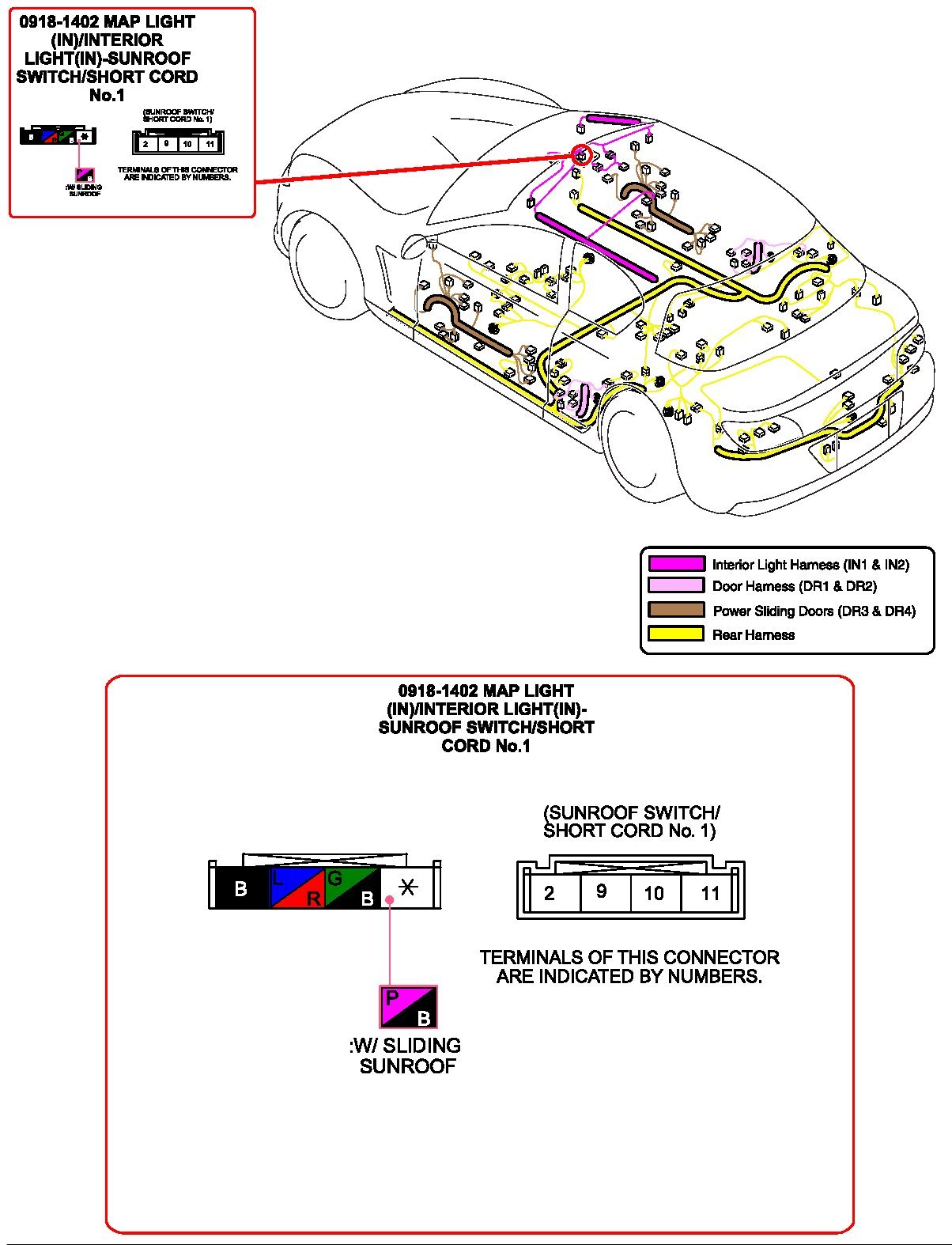

Map Light/Interior Light-Sunroof Switch/Short Cord No.1
Map Light/Interior Light-Sunroof Switch/Short Cord No.1
Map Light/Interior Light-Sunroof Switch/Short Cord No.1:
