Coolant Level Sensor: Testing and Inspection
COOLANT LEVEL SWITCH INSPECTION 1.
Disconnect the coolant level switch.
2.

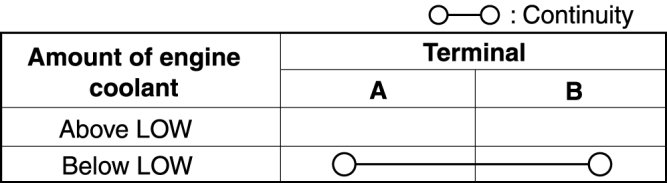

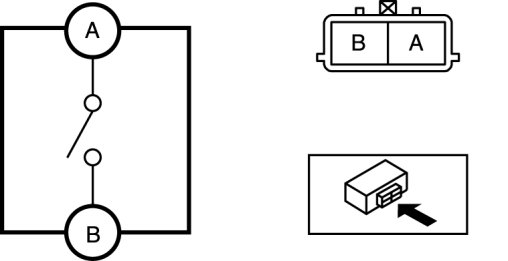

Verify the continuity between the coolant level switch terminals.
1
If the continuity is not as indicated in the tables, replace the coolant reserve tank.
