Overhaul

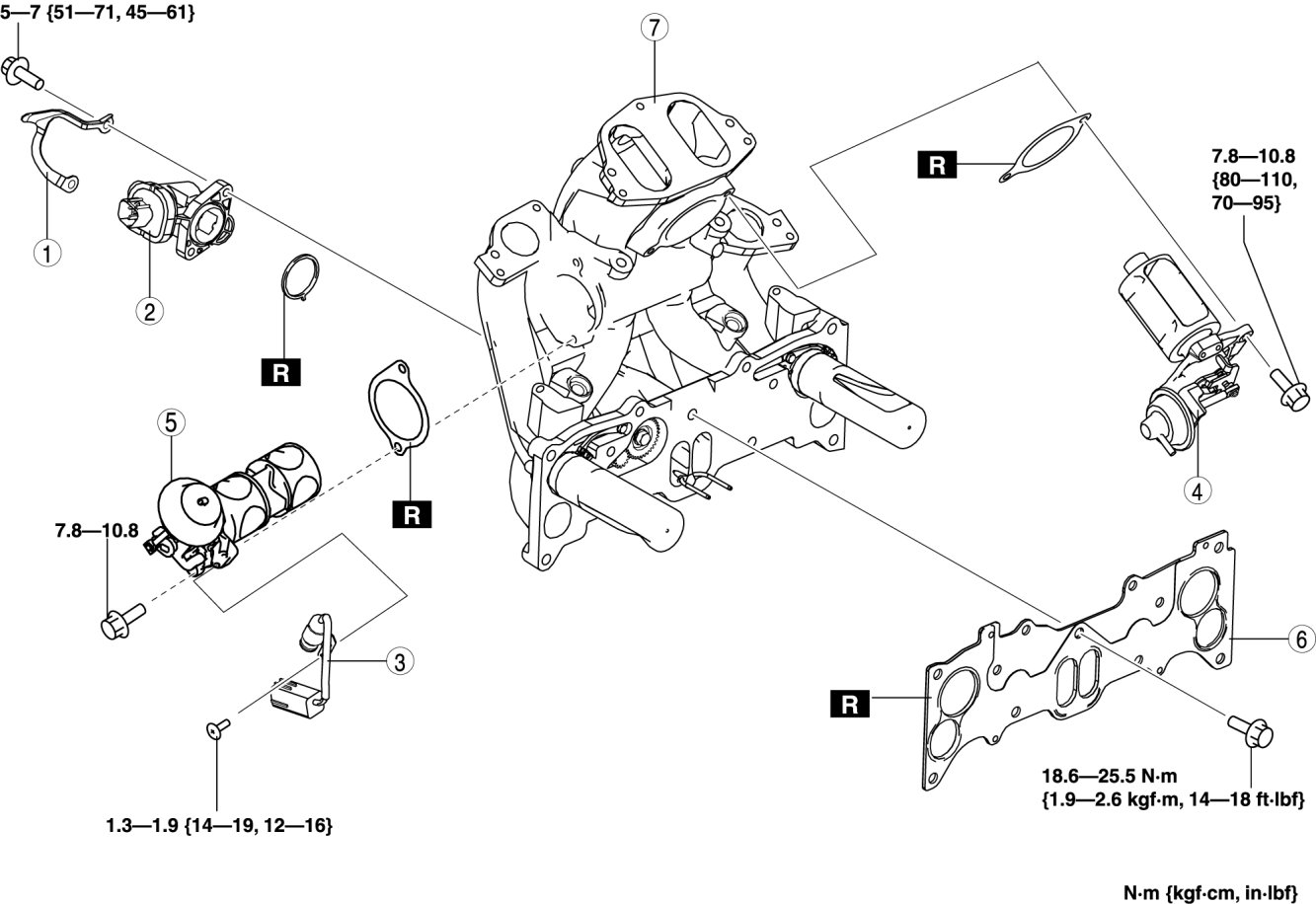

INTAKE MANIFOLD DISASSEMBLY/ASSEMBLY [13B-MSP] 1.
Remove the
intake manifold.
Intake Manifold Removal/Installation 2.
Remove the APV position sensor No.1.
Auxiliary Port Valve (APV) Position Sensor Removal/Installation 3.
Remove the APV position sensor No.2.
Auxiliary Port Valve (APV) Position Sensor Removal/Installation 4.

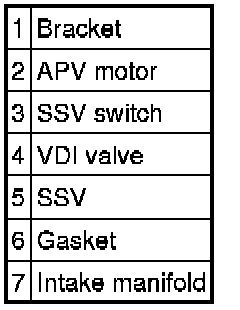

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
