A/C Amplifier Inspection [Manual Air Conditioner]

A/C AMPLIFIER INSPECTION [MANUAL AIR CONDITIONER]

1. Turn the ignition switch to the ON position.

2. Connect the negative (-) lead of the tester to body ground.

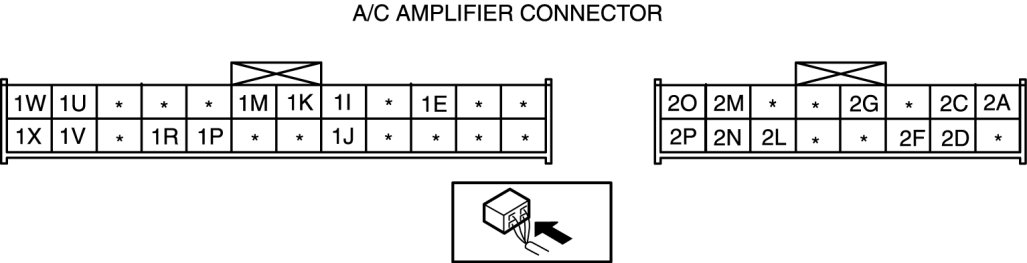

3. By inserting the positive (+) lead of the tester into each A/C amplifier terminal, measure the voltage according to the terminal voltage table.

- If there is any malfunction, inspect the parts under "Inspection item(s)".

- If the parts under "Inspection item(s)" are found to be normal, replace the A/C amplifier.

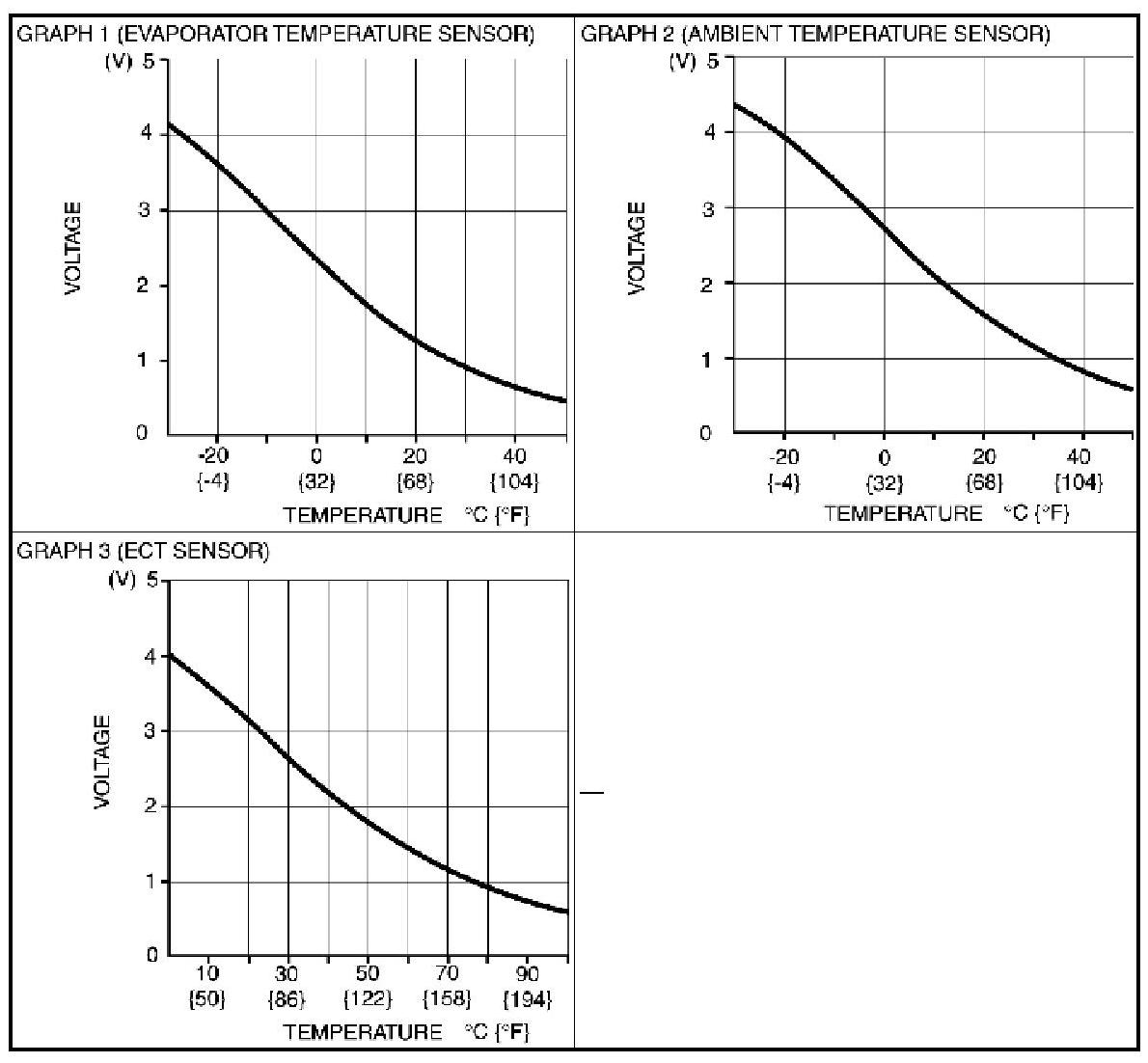

Terminal Voltage Table (Reference)

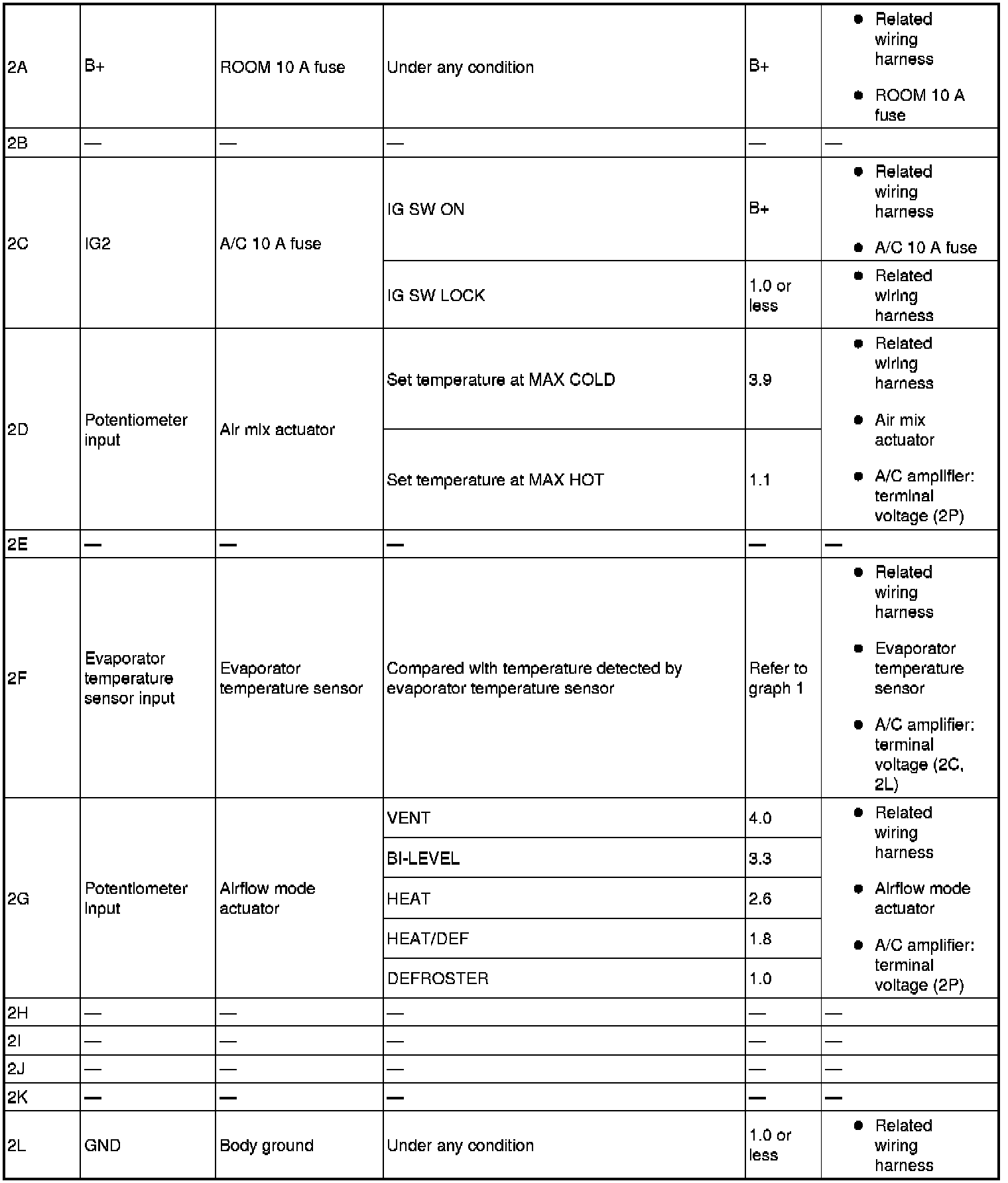

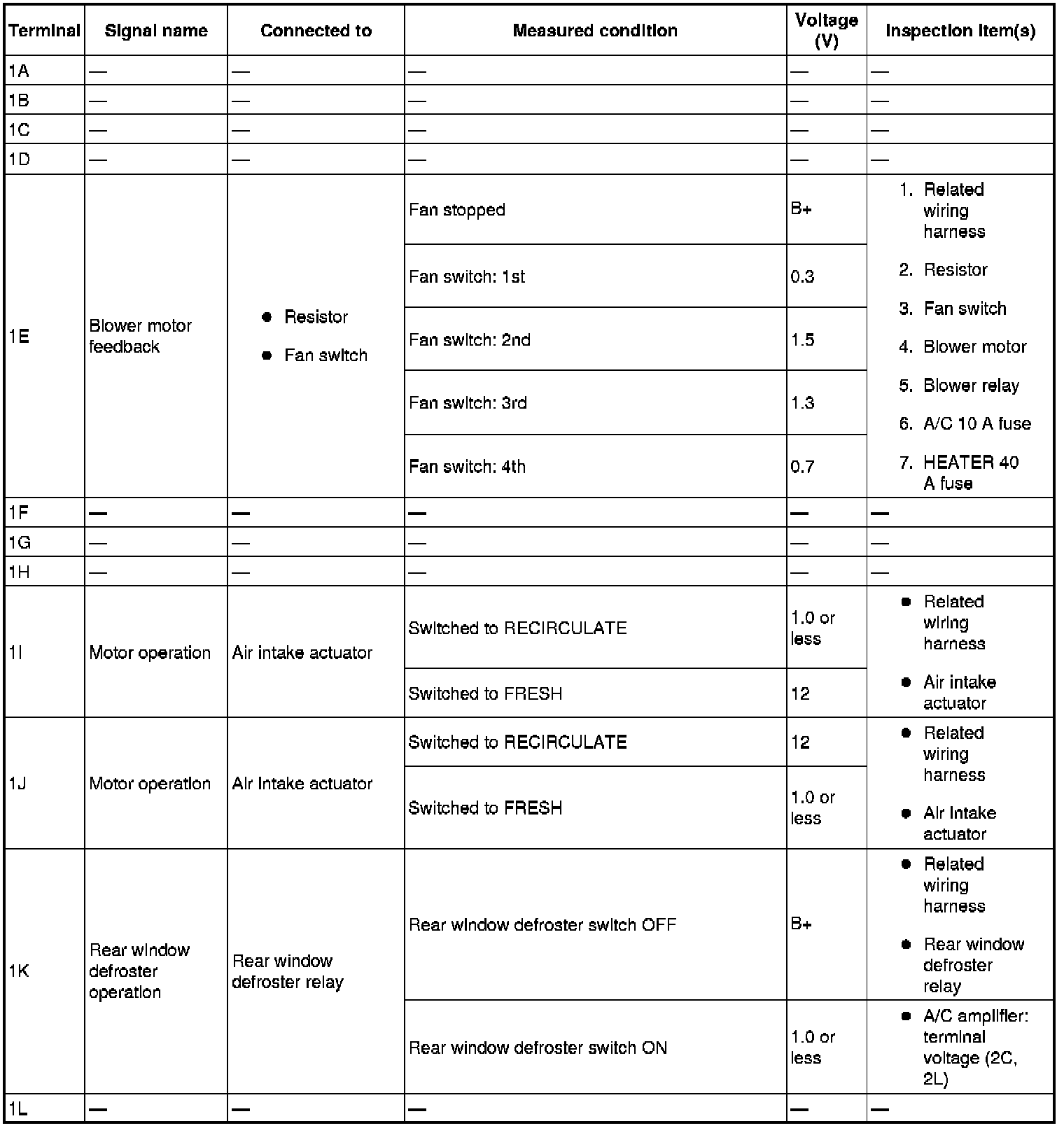

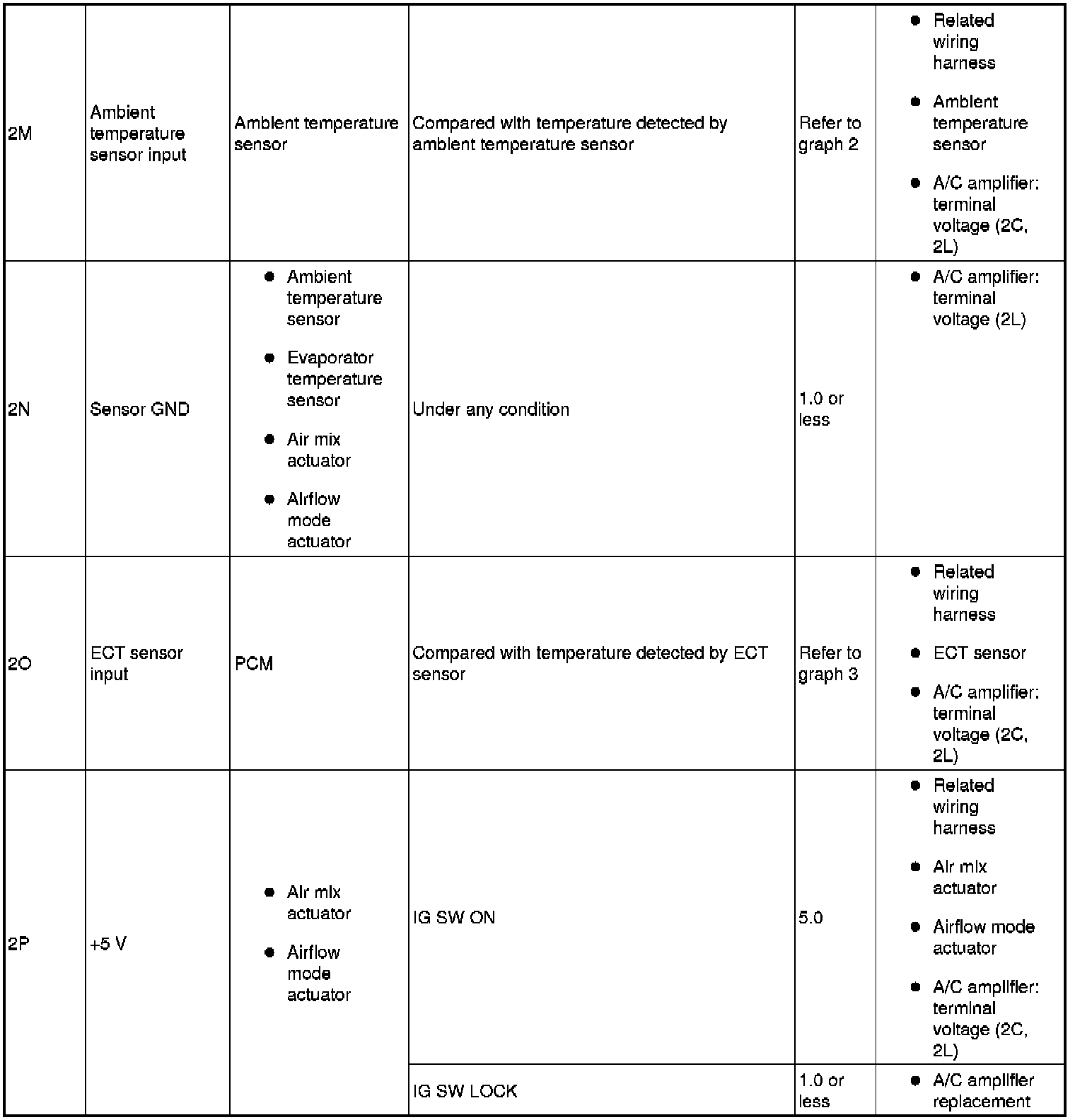

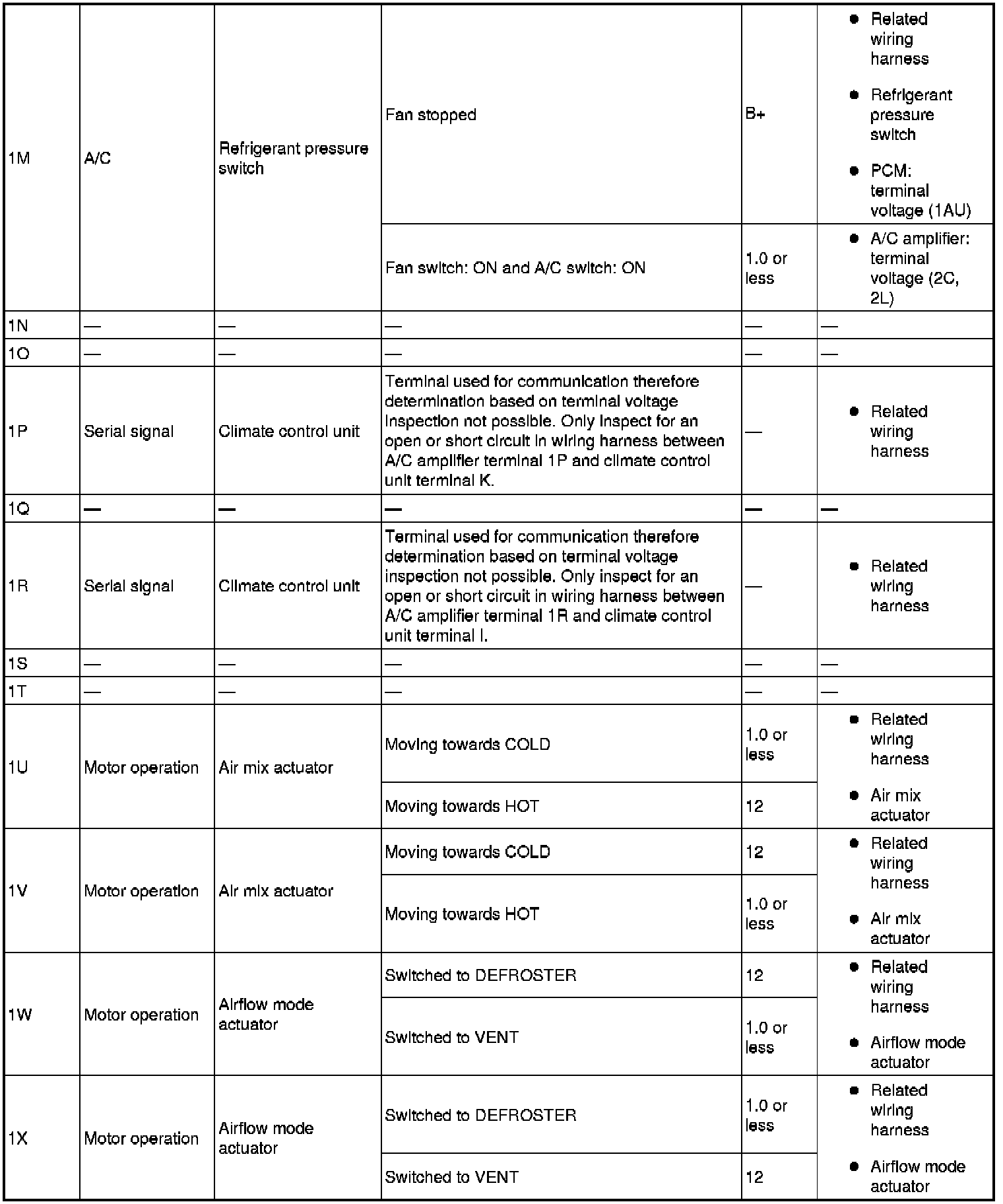

Terminal Voltage Table (Reference) (Part 1):

Terminal Voltage Table (Reference) (Part 2):

Terminal Voltage Table (Reference) (Part 3):

Terminal Voltage Table (Reference) (Part 4):
