Blower Unit Removal/Installation

BLOWER UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Console Removal and Replacement

b. Ashtray

c. Glove compartment Service and Repair

d. Side panel Side Panel Removal/Installation

e. Lower panel Lower Panel Removal/Installation

f. Column cover Service and Repair

g. Center panel unit Center Panel Unit Removal/Installation

h. Steering shaft installation nuts Service and Repair

i. A-pillar trim A-Pillar Trim Removal/Installation

j. A/C amplifier A/C Amplifier Removal/Installation [Full-Auto Air Conditioner] A/C Amplifier Removal/Installation [Manual Air Conditioner]

k. TCM (AT) Service and Repair

l. Auto light/wiper control module Service and Repair

m. Door lock control module Service and Repair

n. Dashboard Dashboard Removal/Installation

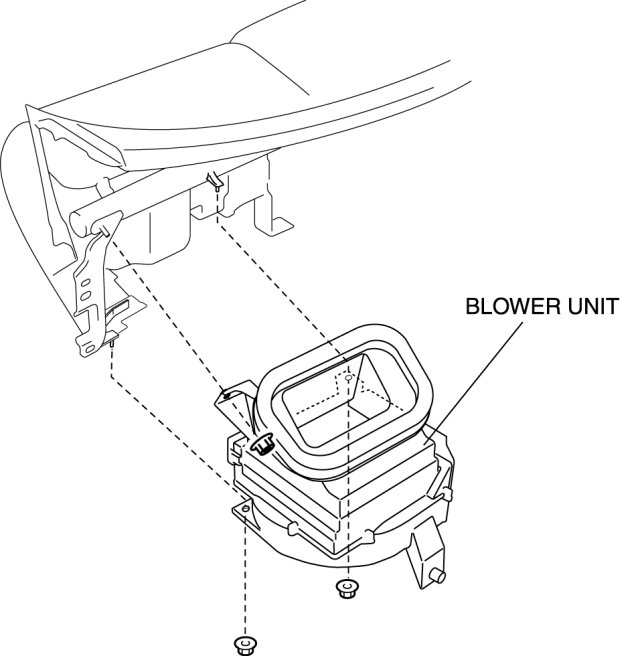

3. Remove the blower unit as shown in the figure.

4. Install in the reverse order of removal.
