Door Switch: Testing and Inspection

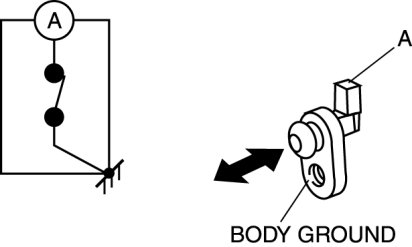

DOOR SWITCH INSPECTION 1.
Remove the
door switch.
Service and Repair 2.

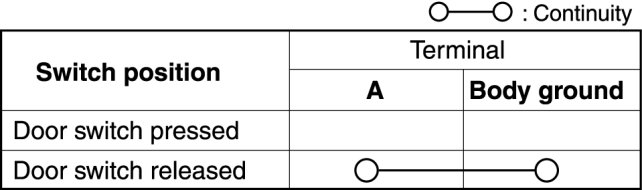

Verify that the continuity between
door switch terminal and the body ground is as indicated in the table.
-
If not as indicated in the table, replace the
door switch.
