Key Cylinder Lamp: Service and Repair




IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION

Vehicles With Keyless Entry System

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

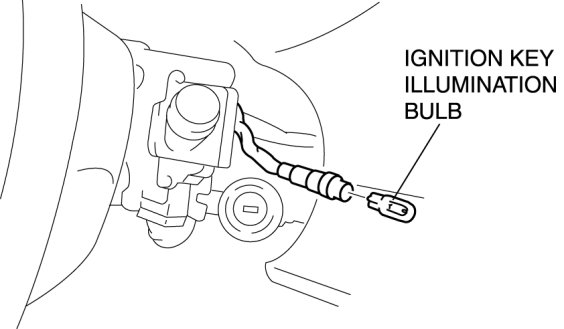

3. Remove the ignition key illumination bulb.






4. Install in the reverse order of removal.

Vehicles With Advanced Keyless System

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

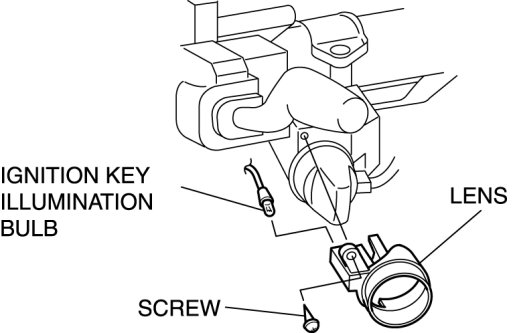

3. Remove the screw.

4. Remove the lens.

5. Remove the ignition key illumination bulb.






6. Install in the reverse order of removal.
