License Plate Lamp: Service and Repair

LICENSE PLATE LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Trunk end trim (See Trunk End Trim Removal/Installation.)

b. Trunk side trim (See .)

c. Rear combination light (See Service and Repair.)

d. Request switch (Vehicles with the advanced keyless system) Service and Repair

e. Detach the license plate light from the rear bumper.

f. Rear bumper (See Removal and Replacement.)

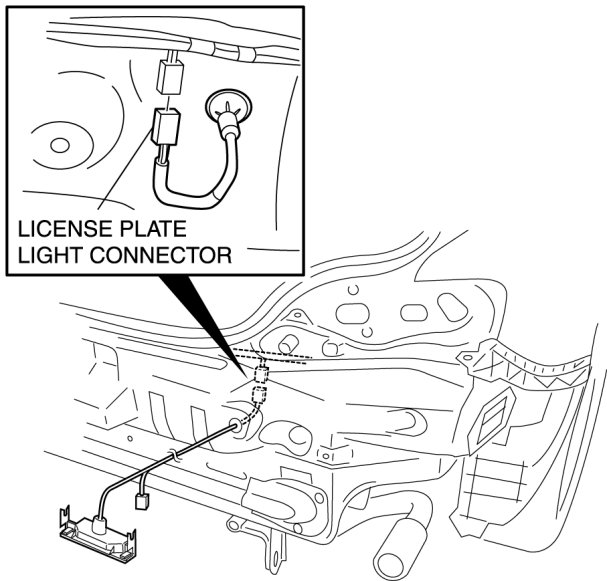

3. Disconnect the license plate light connector and remove the license plate light.






4. Install in the reverse order of removal.
