Trunk Lamp: Testing and Inspection
TRUNK COMPARTMENT LIGHT SWITCH INSPECTIONNOTE: -
The trunk compartment light switch is built into the trunk lock.
1.
Remove the trunk lid trim.
2.

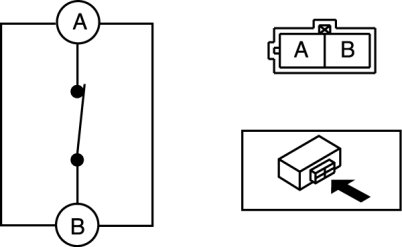

Disconnect the trunk compartment light switch connector.
3.

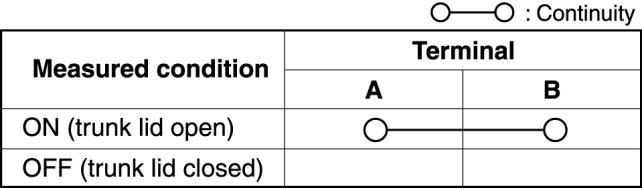

Verify that the continuity between the trunk compartment light switch terminals is as indicated in the table.
-
If not as indicated in the table, replace the trunk lock.
