Fuel Overflow Reservoir: Testing and Inspection

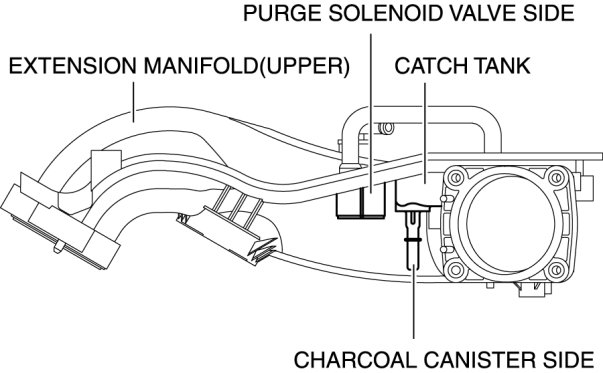

CATCH TANK INSPECTION [13B-MSP] 1.
Remove the extension manifold (upper).
Intake-Air System Removal/Installation 2.
Seal the catch tank on the purge solenoid valve side.
3.
Inspect for air leakage when blowing air from the charcoal canister side.
-
If air leaks, replace the extension manifold (upper).
Intake-Air System Removal/Installation
