Secondary Shutter Valve (SSV) Switch Removal/Installation

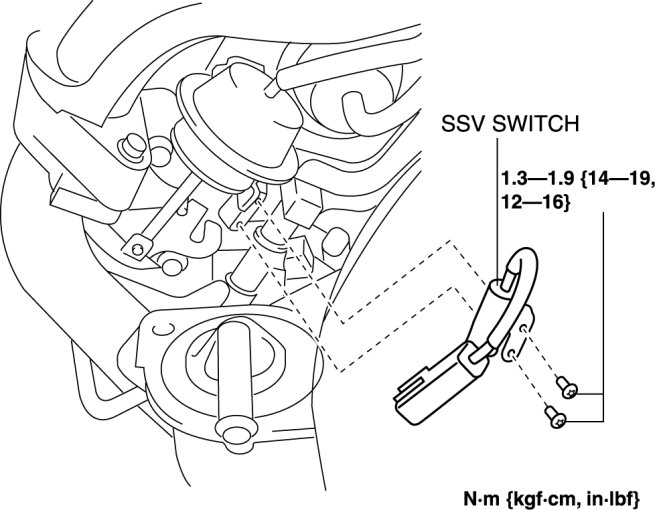

SECONDARY SHUTTER VALVE (SSV) SWITCH REMOVAL/INSTALLATION [13B-MSP]

1. Remove the battery cover. (See Removal and Replacement)

2. Disconnect the negative battery cable.

3. Remove the battery. Removal and Replacement

4. Remove the air control valve. Service and Repair

5. Remove the generator. Removal and Replacement

6. Disconnect the SSV switch connector.

7. Remove the SSV installation screws and remove the SSV switch.






8. Install in the reverse order of removal.
