Assembly Procedure

Assembly Procedure

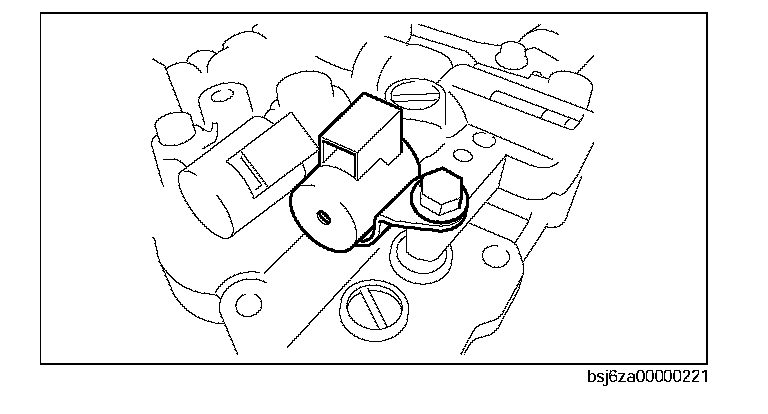

Caution: Do not damage the solenoid.





1. Install the shift solenoid E to the control valve body.

Tightening torque:
8.0-12.0 Nm (81.6-122.3 kgf-cm, 70.9-106.1 in. lbf.)

2. Install the bolt and the wiring harness clip.

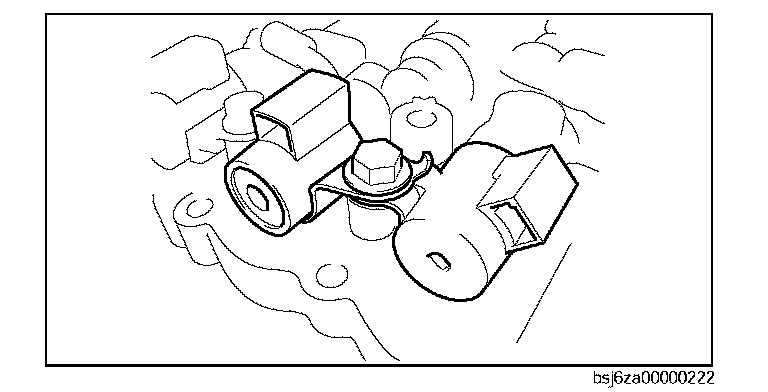

Caution: Do not damage the solenoid.





3. Install the shift solenoid A to the control valve body.

Tightening torque:
8.0-12.0 Nm (81.6-122.3 kgf-cm, 70.9-106.1 in. lbf.)

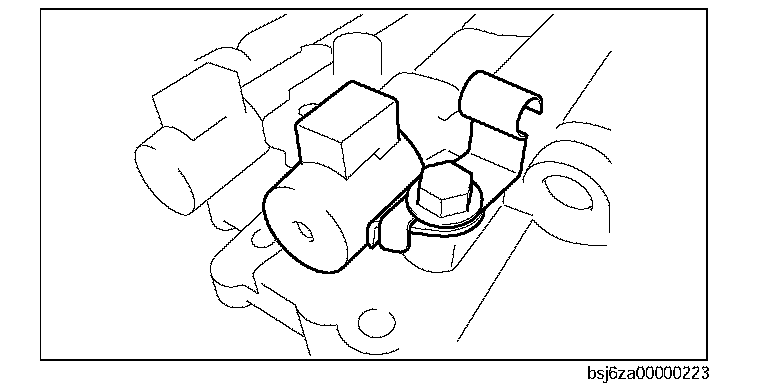

Caution: Do not damage the solenoid.





4. Install the shift solenoid B and the shift solenoid D to the control valve body.

Tightening torque:
8.0-12.0 Nm (81.6-122.3 kgf-cm, 70.9-106.1 in. lbf.)

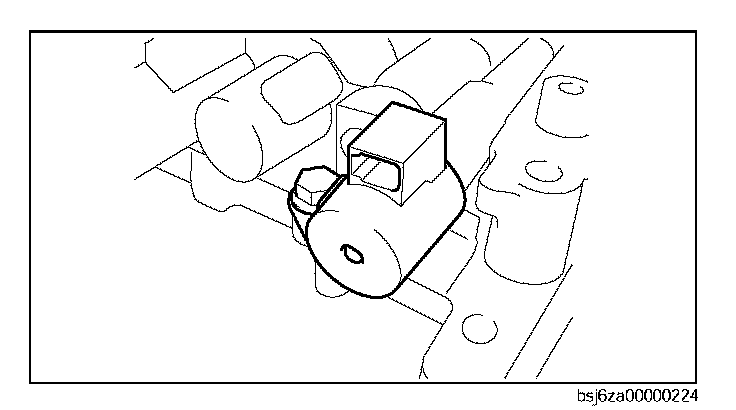

Caution: Do not damage the solenoid.





5. Install the shift solenoid C to the control valve body.

Tightening torque:
8.0-12.0 Nm (81.6-122.3 kgf-cm, 70.9-106.1 in. lbf.)
