Disassembly Procedure

Disassembly Procedure

Caution: Do not damage the solenoid.

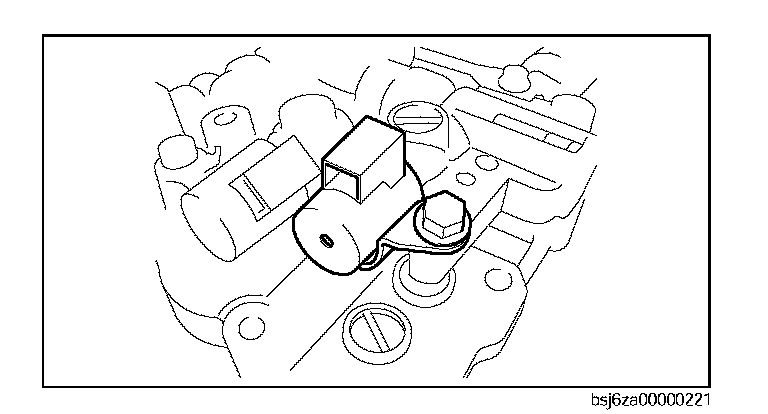

1. Remove the shift solenoid C from the control valve body.

Caution: Do not damage the solenoid.

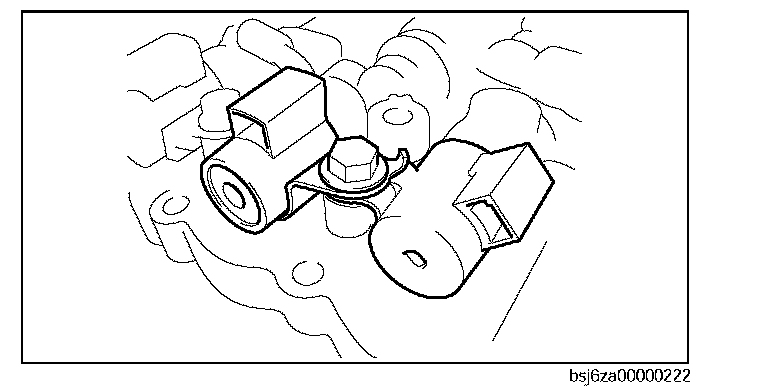

2. Remove the shift solenoid B shift solenoid D from the control valve body.

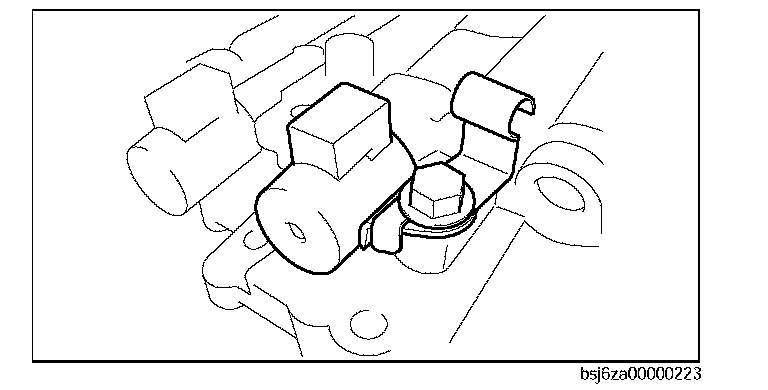

3. Remove the bolt and the wiring harness clip.

Caution: Do not damage the solenoid.





4. Remove the shift solenoid A from the control valve body.

Caution: Do not damage the solenoid.





5. Remove the shift solenoid E from the control valve body.
