Shift Rod Disassembly Note

Shift Rod Disassembly Note

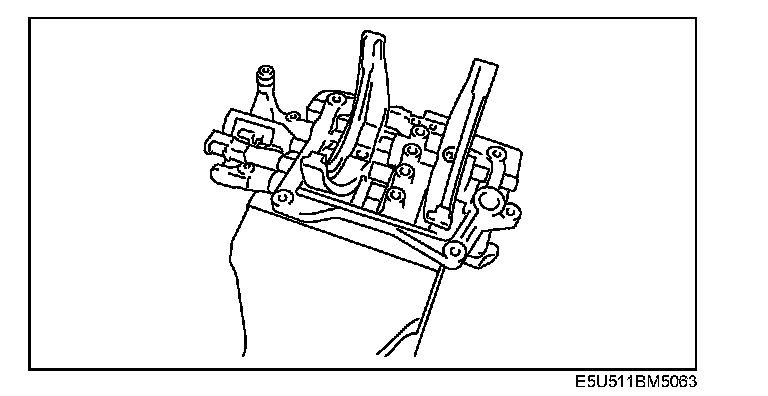

1. Set the change frame in the vise as shown in the figure.

Caution: Insert aluminum plates in the vise and tighten the vise handle lightly so as not to damage the part.

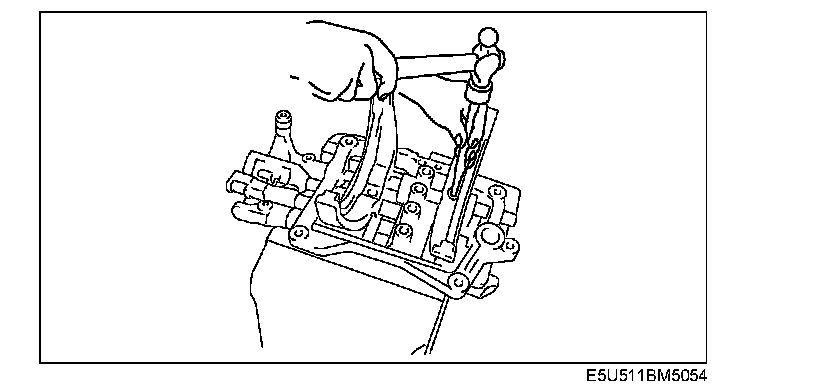

2. Remove the spring pins from each of the shift rods using a pin punch.
3. Place the shift mechanism in the neutral position.





4. Pull out the shift rods from the change frame.

Caution: When pulling out the shift rods, press the top of each detent ball so that it doesn't spring out.
