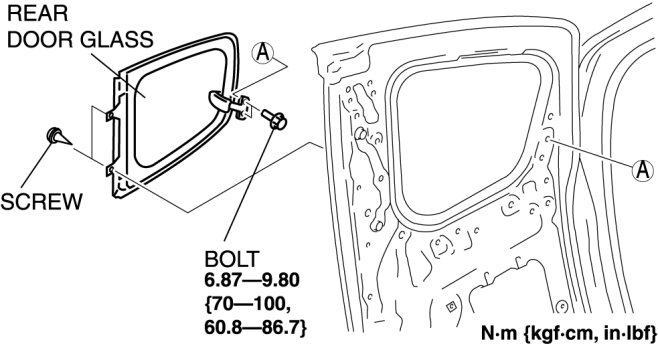

Rear Door Window Glass: Service and Repair
REAR DOOR GLASS REMOVAL/INSTALLATION 1.
Remove the rear door lower trim.
Rear Door Lower Trim Removal/Installation 2.
Remove the rear door upper trim.
Rear Door Upper Trim Removal/Installation 3.
Pull up the rear door weatherstrip and remove the screw.
4.
Remove the bolts.
5.
Remove the rear door glass.
6.
Install in the reverse order of removal.
