Tribute Hybrid Vehicle Identification

TRIBUTE HYBRID VEHICLE IDENTIFICATION

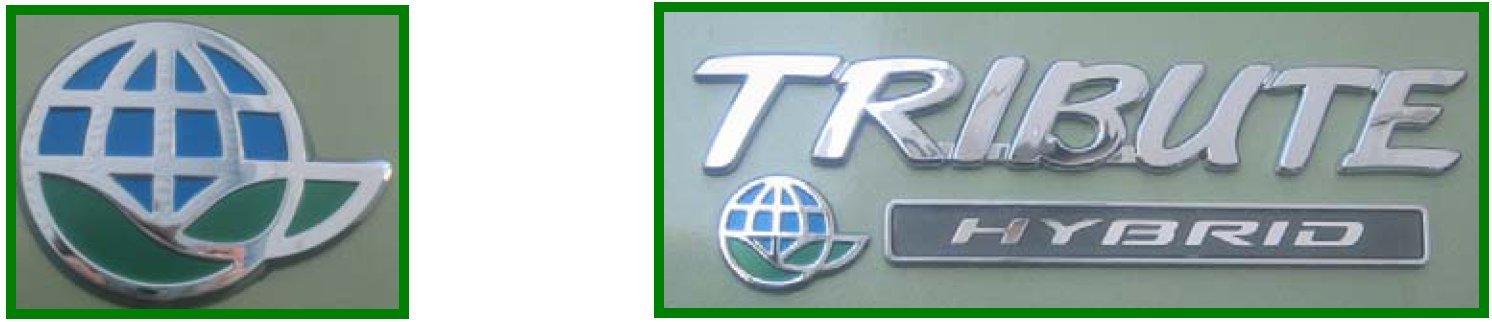

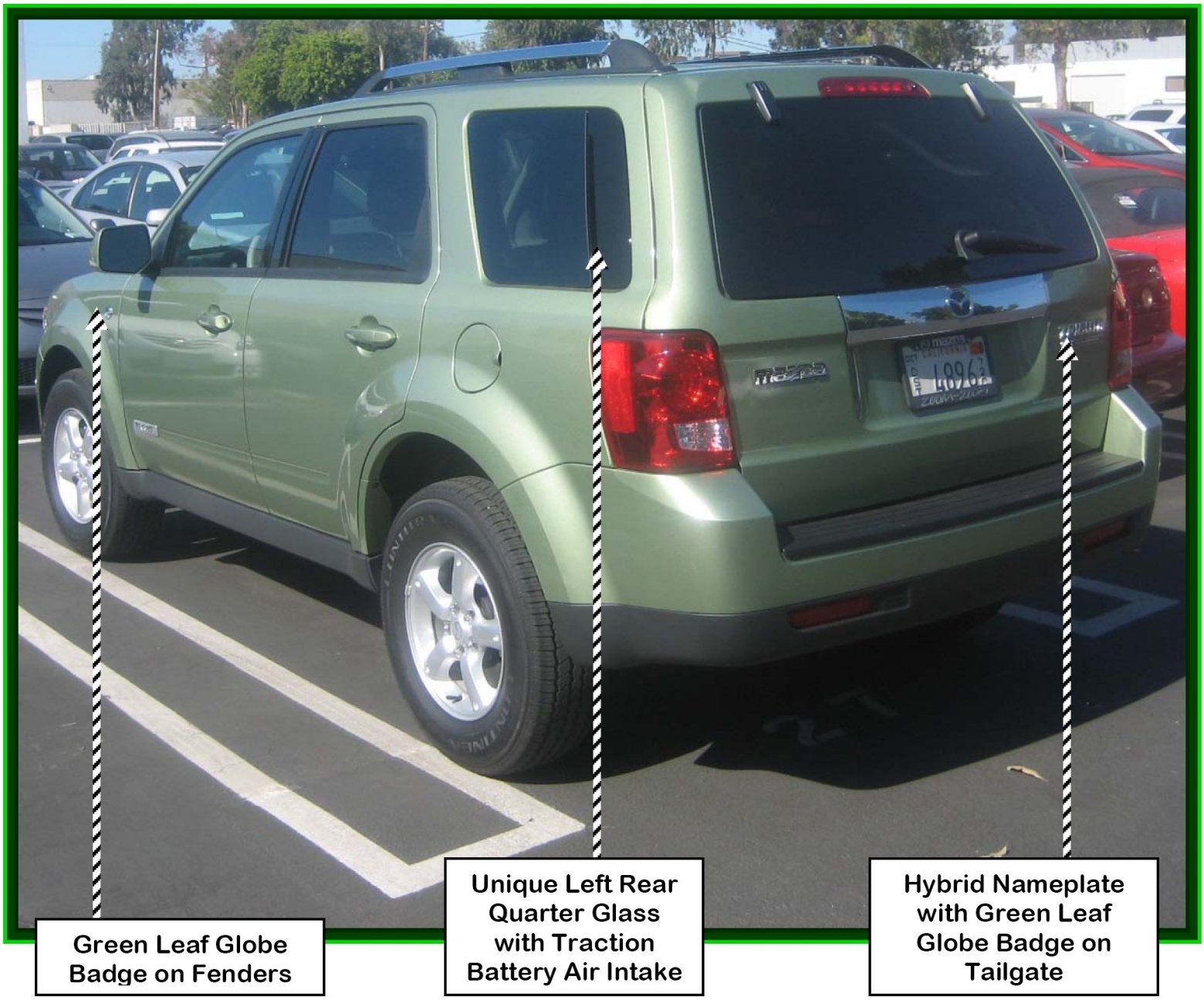

- The Tribute Hybrid vehicle can be easily identified by the Mazda "green leaf globe" badges located on the left and right fenders. There is also a Hybrid nameplate on the tailgate that also includes the "green leaf" icon.






- The Tribute Hybrid vehicles have a unique left rear quarter glass that incorporates the high-voltage traction battery air intake.

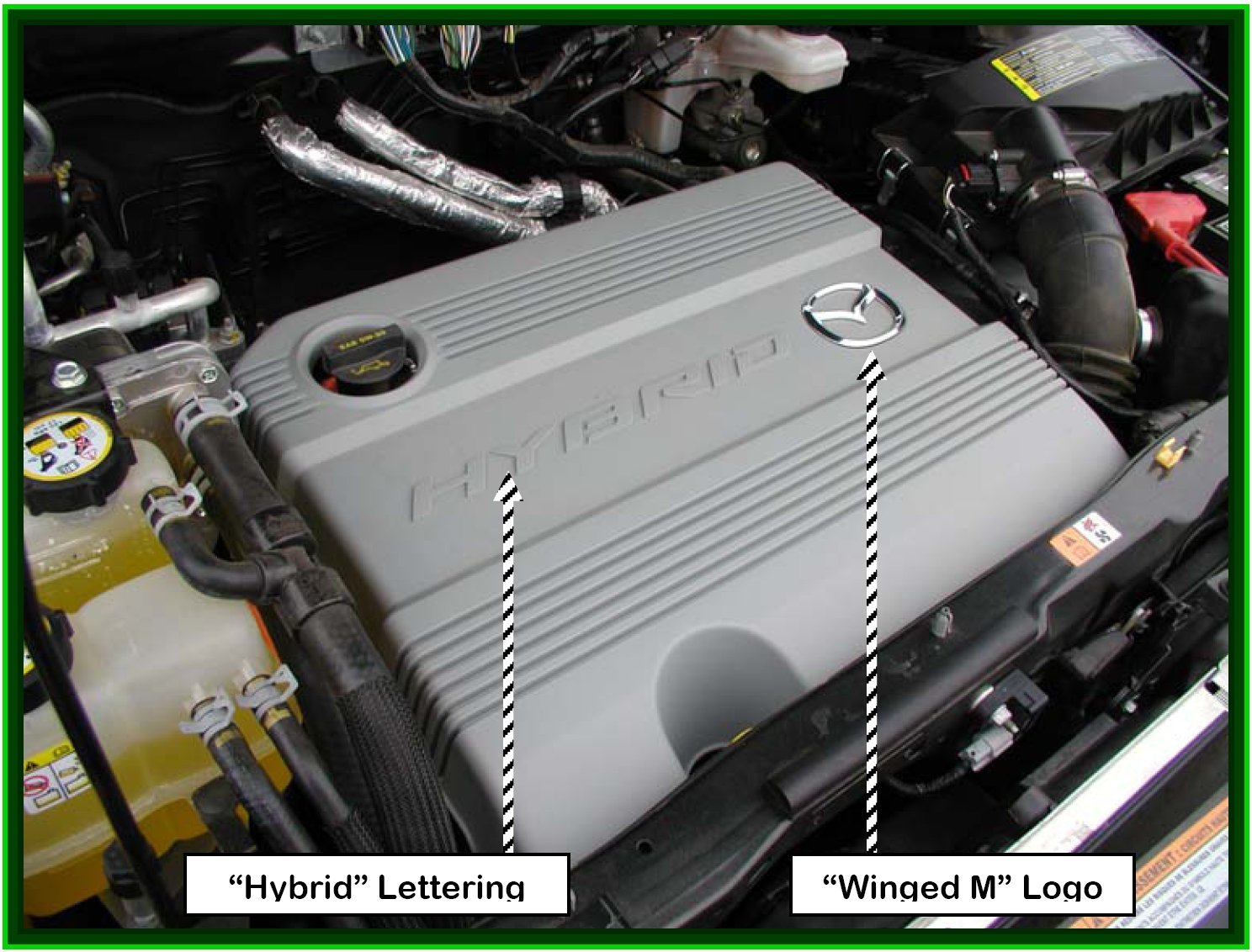

- The Tribute Hybrid vehicle has a unique engine appearance cover with Mazda "Winged M" logo and HYBRID lettering.

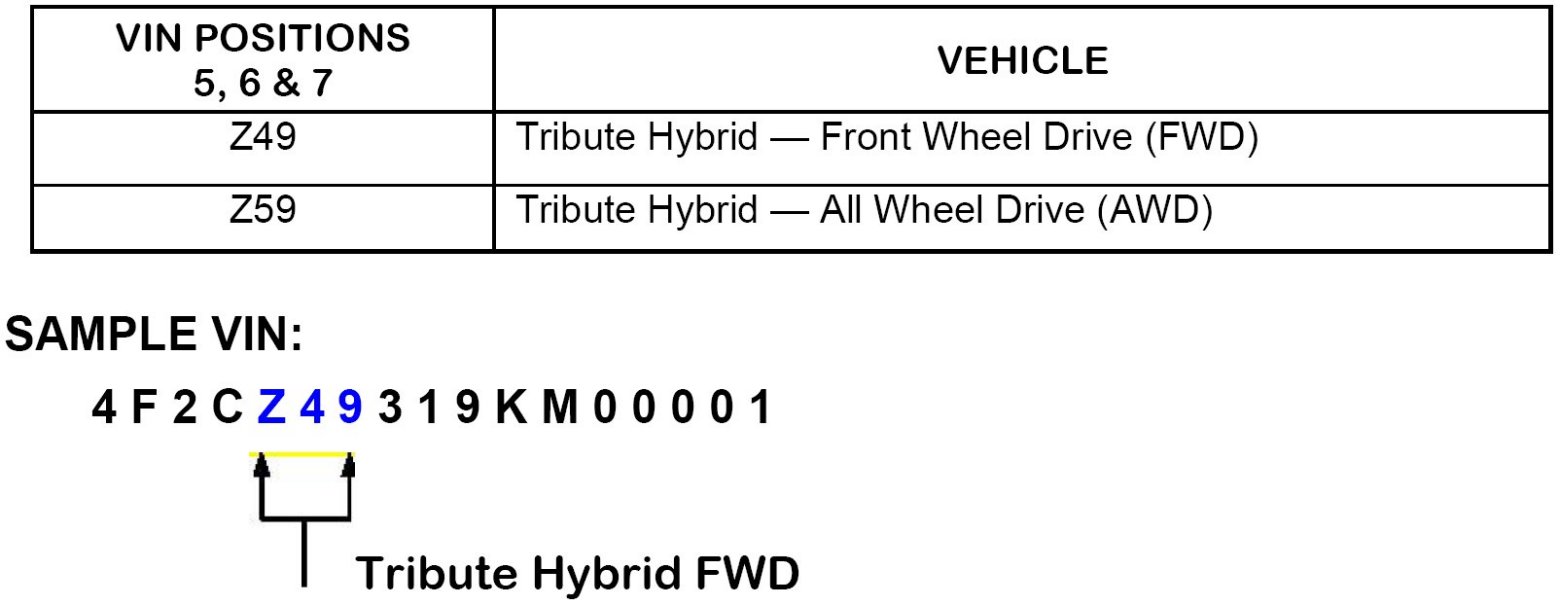

- The 5th, 6th and 7th digits of the vehicle identification number (VIN) identify the hybrid vehicle line.
