Oil Separator: Service and Repair
-

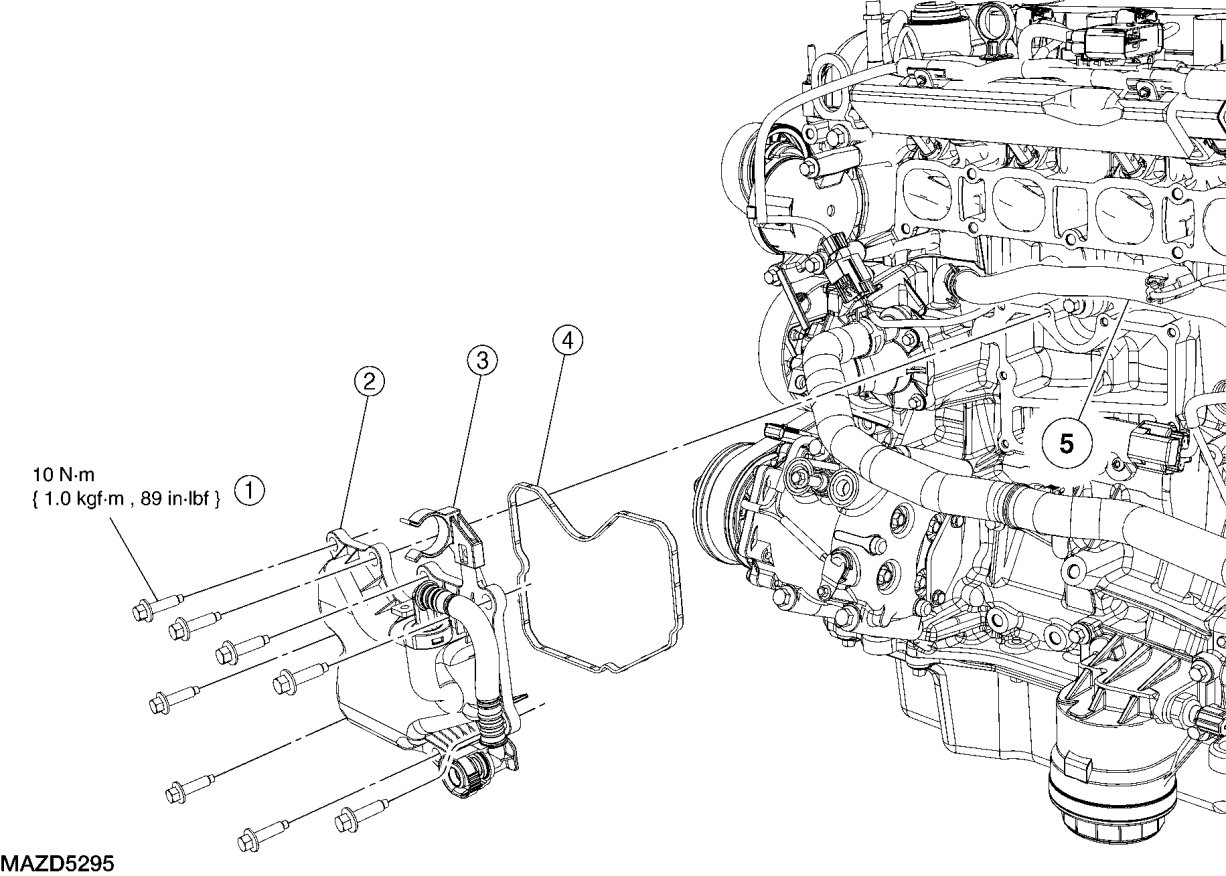

CRANKCASE VENT OIL SEPARATOR REMOVAL/INSTALLATION - HYBRID 1.
Remove the intake manifold. See -
Service and Repair.
2.
Release the coolant bypass hose from the clip.
3.
Remove the 8 bolts, the crankcase vent oil separator and gasket.
-
To install, tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.
4.
To install, reverse the removal procedure.
-
Clean and inspect the sealing surfaces.
