Anti-Lock Brake System (ABS) DTC Chart
ANTI-LOCK BRAKE SYSTEM (ABS) DTC CHARTNOTE:This DTC chart applies to non-hybrid vehicles only. For hybrid vehicle DTCs, see -
Anti-Lock Brake System (ABS) DTC Chart.
NOTE:If DTC B2900, C1805 and U0001 are set at the same time, diagnose the concern for U0001 first.

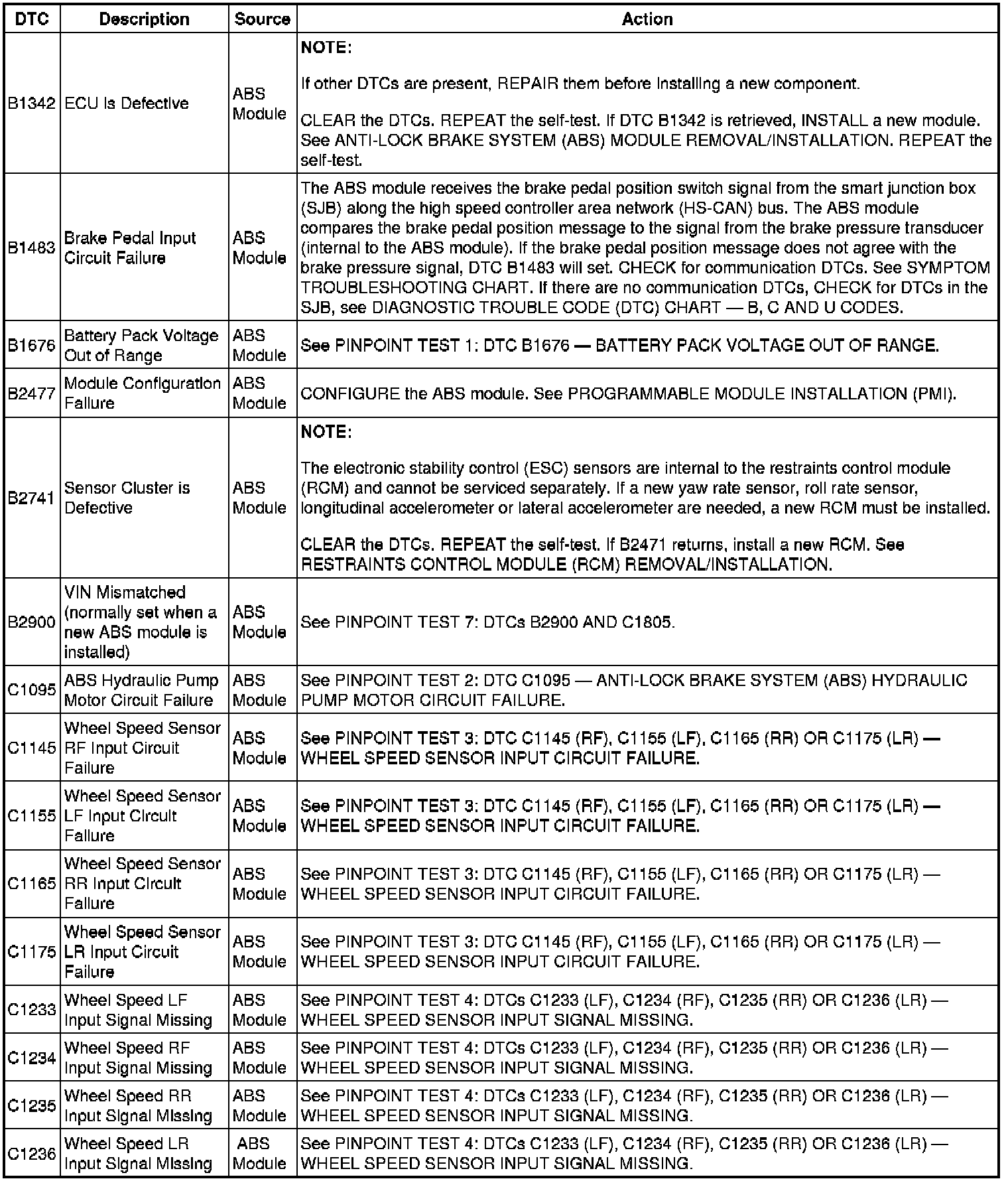

B1342-B2900 / C1095-C1236:

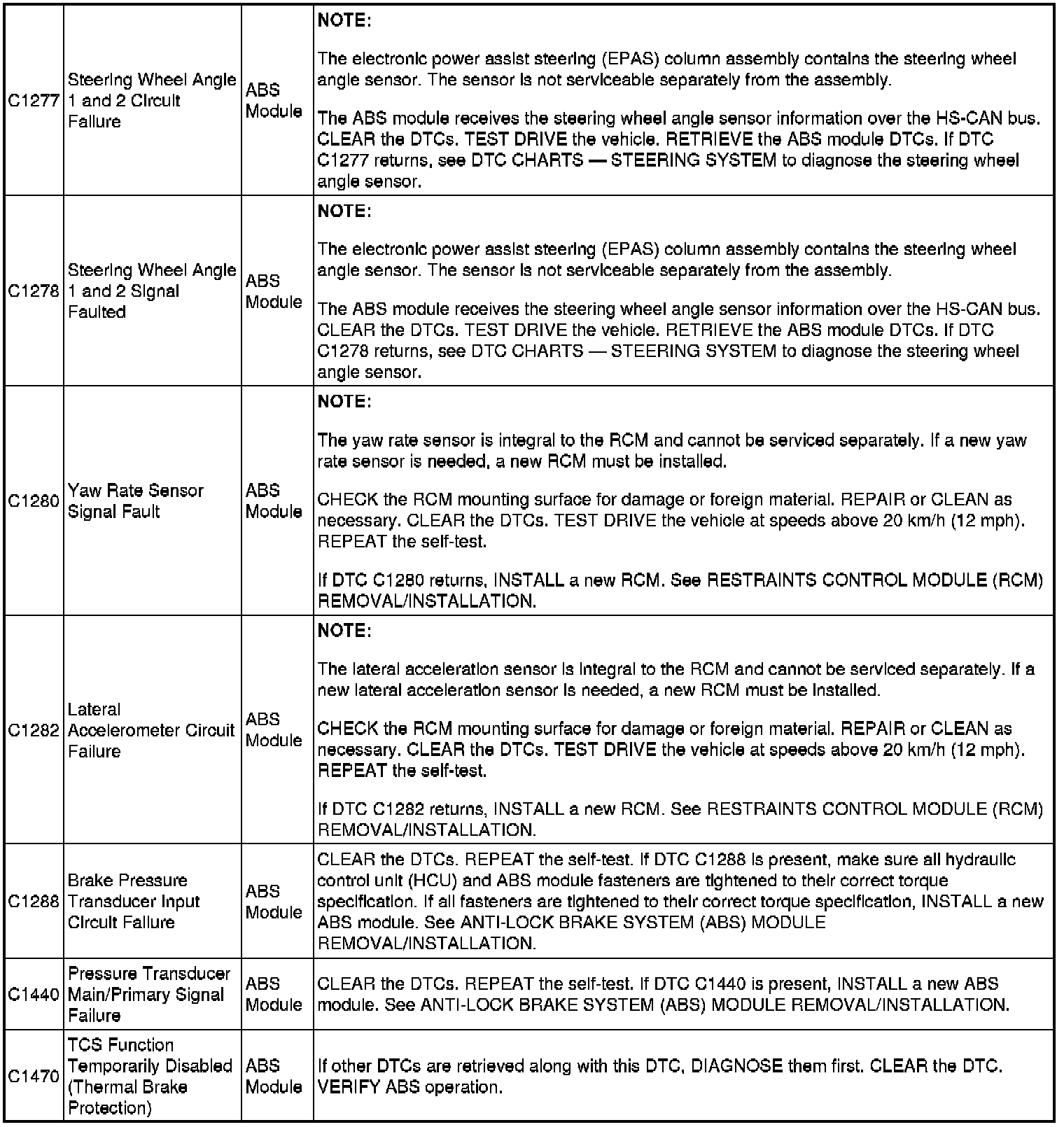

C1277-C1470:

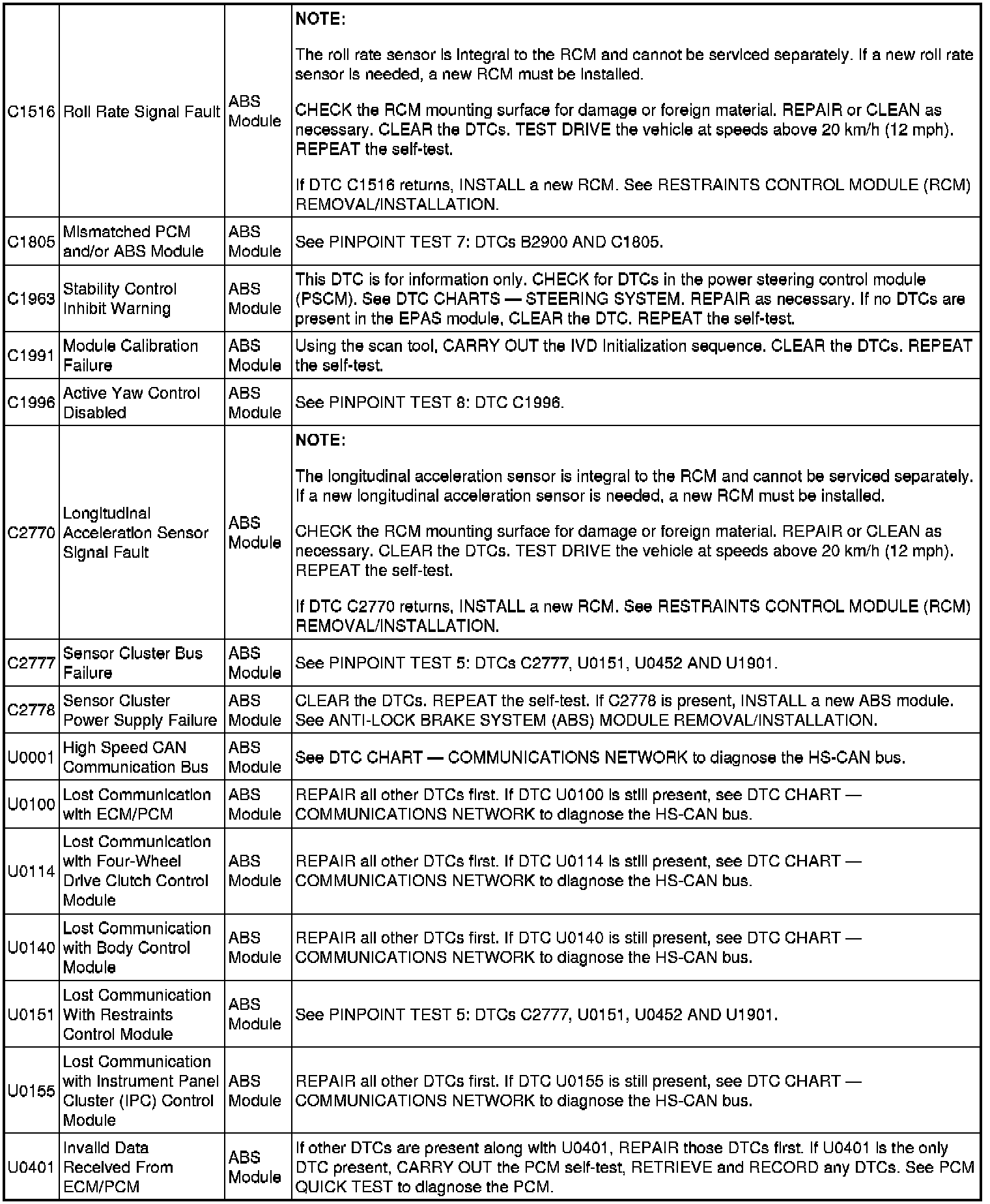

C1516-C2778 / U0001-U0401:
U0402-U2050:
