Fuel Tank: Locations

-

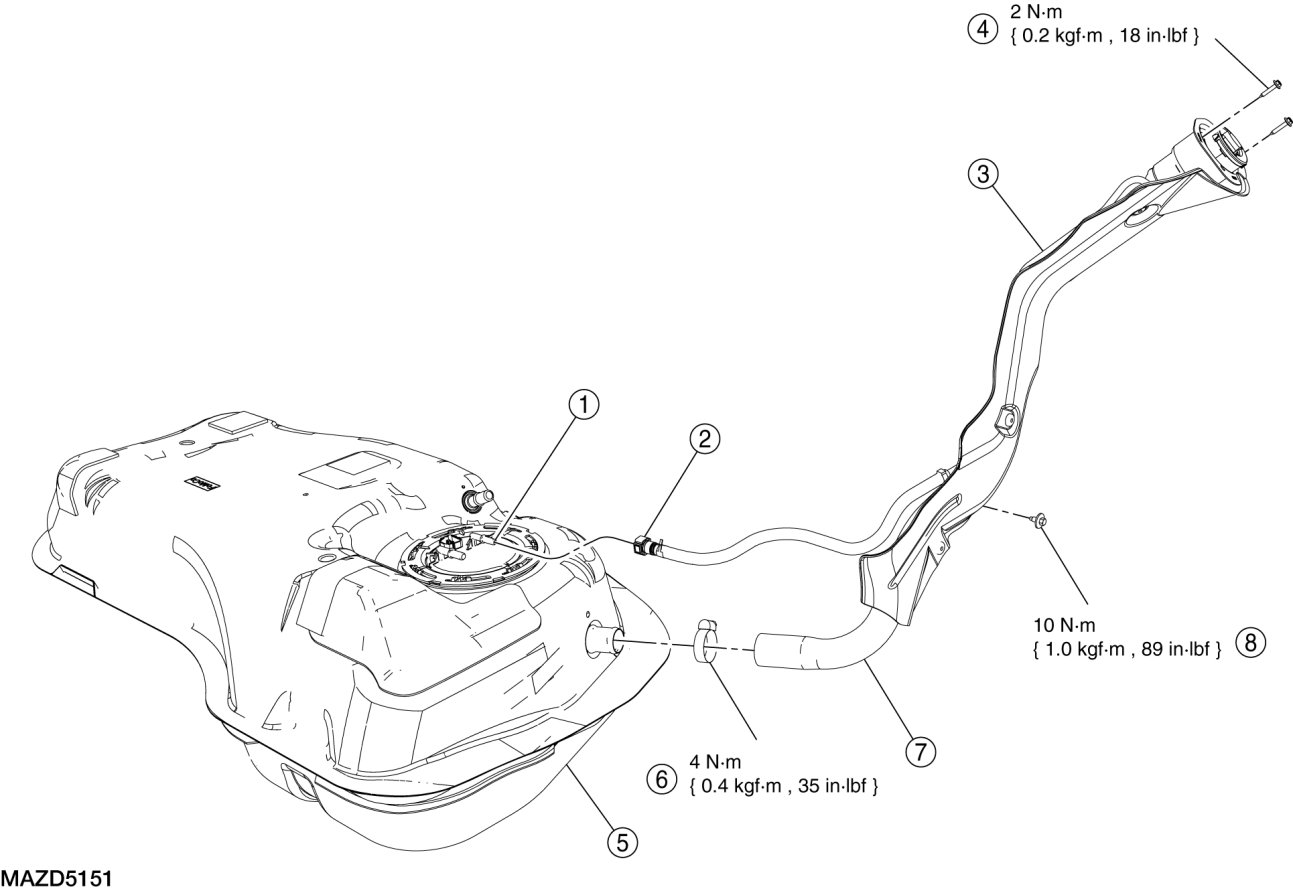

FUEL TANK AND FUEL FILLER PIPE - EXPLODED VIEW

Fuel Tank Filler Pipe Assembly

Fuel Tank and Fuel Pump (FP) Module

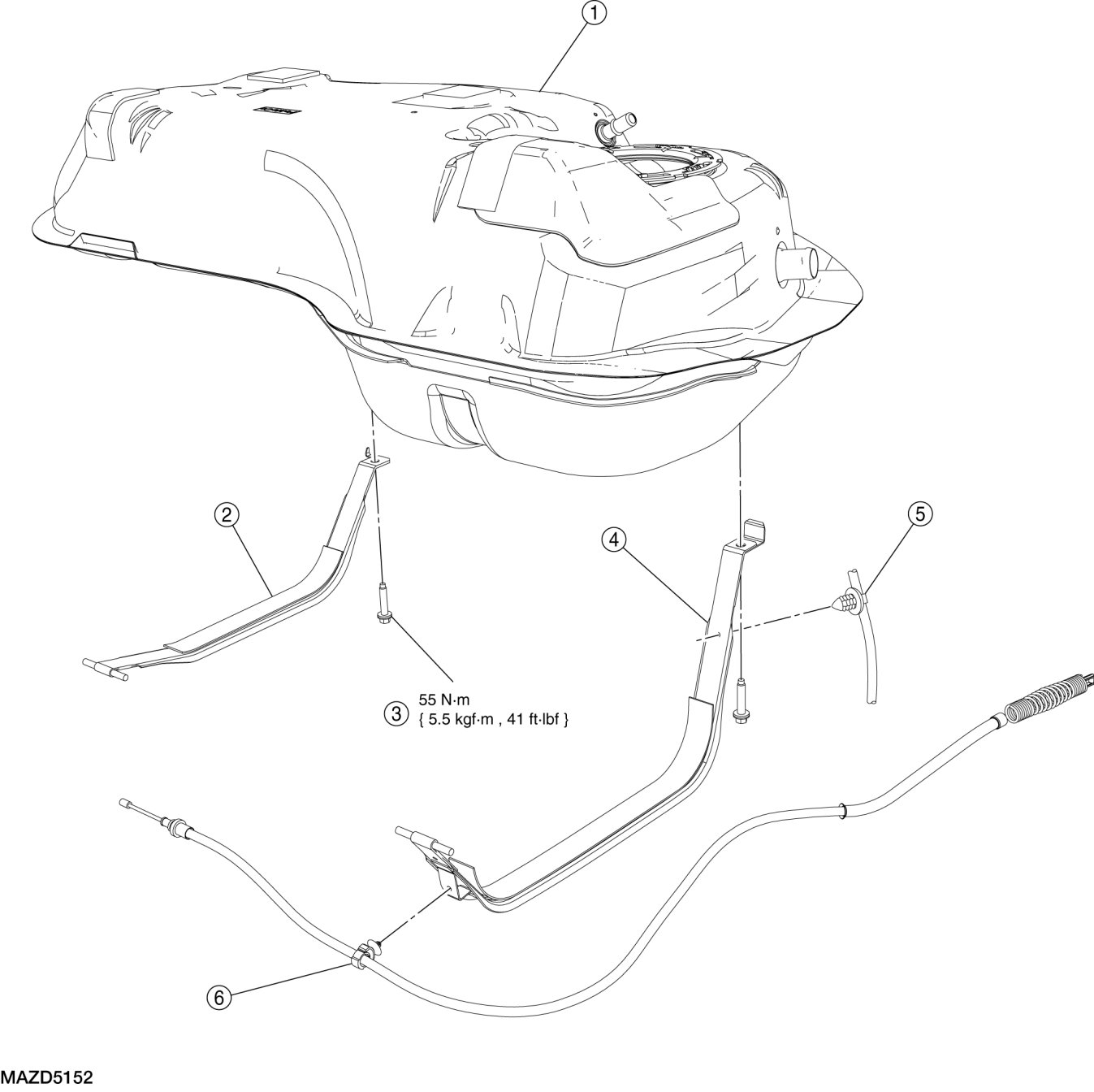

Fuel Tank Supports

1. For additional information, see the procedures.
