Seals and Gaskets: Service and Repair



-
HALFSHAFT SEAL - RH, FRONT WHEEL DRIVE (FWD) REMOVAL/INSTALLATION

Removal

1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

2. Remove the front RH halfshaft. See Front Axle / Front Drive Halfshafts Removal/Installation.

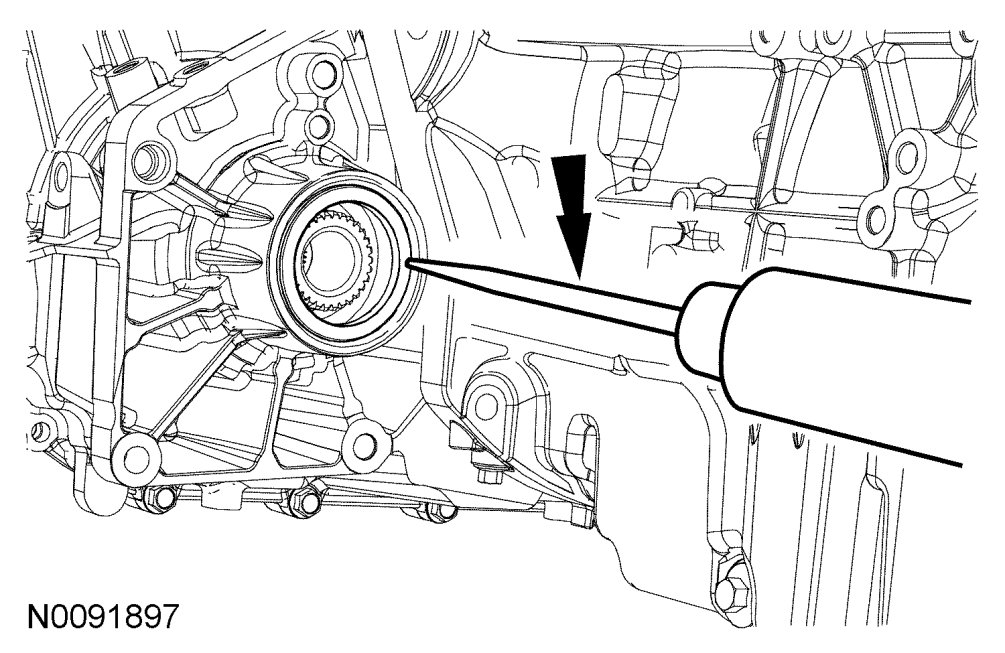

3. Using a suitable awl, poke a small hole in the halfshaft seal.

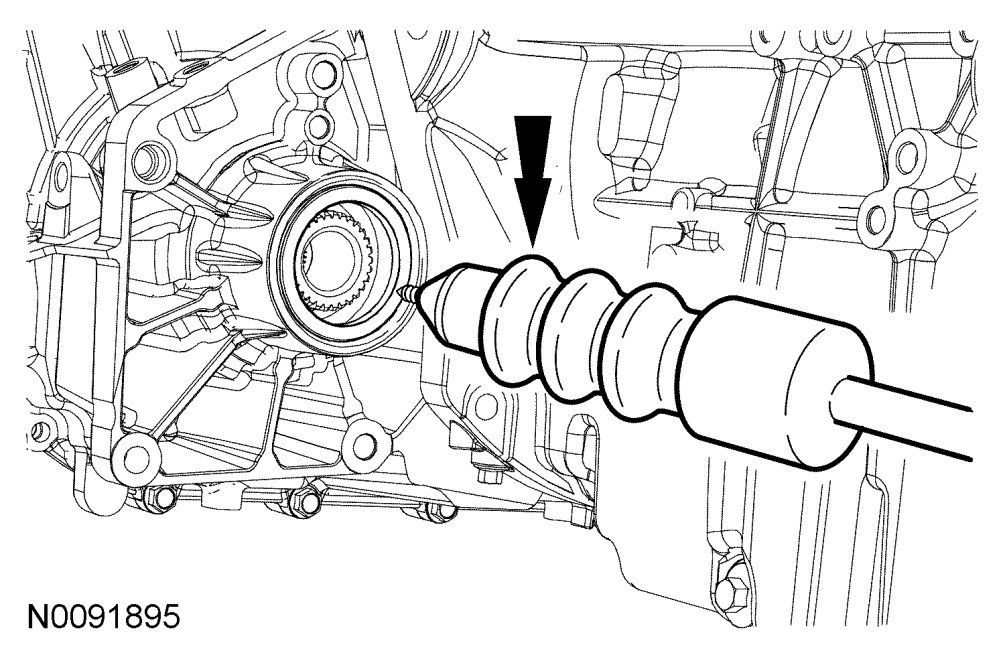

4. Using a suitable dent puller, remove the halfshaft seal.

Installation

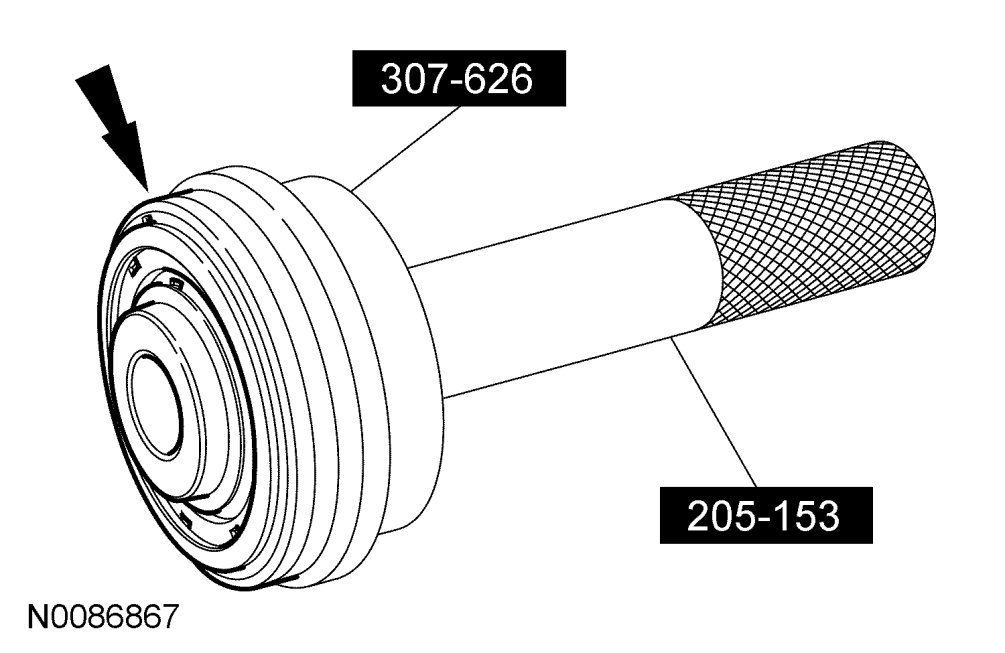

1. Install a new halfshaft seal on the Seal Installer and Handle.

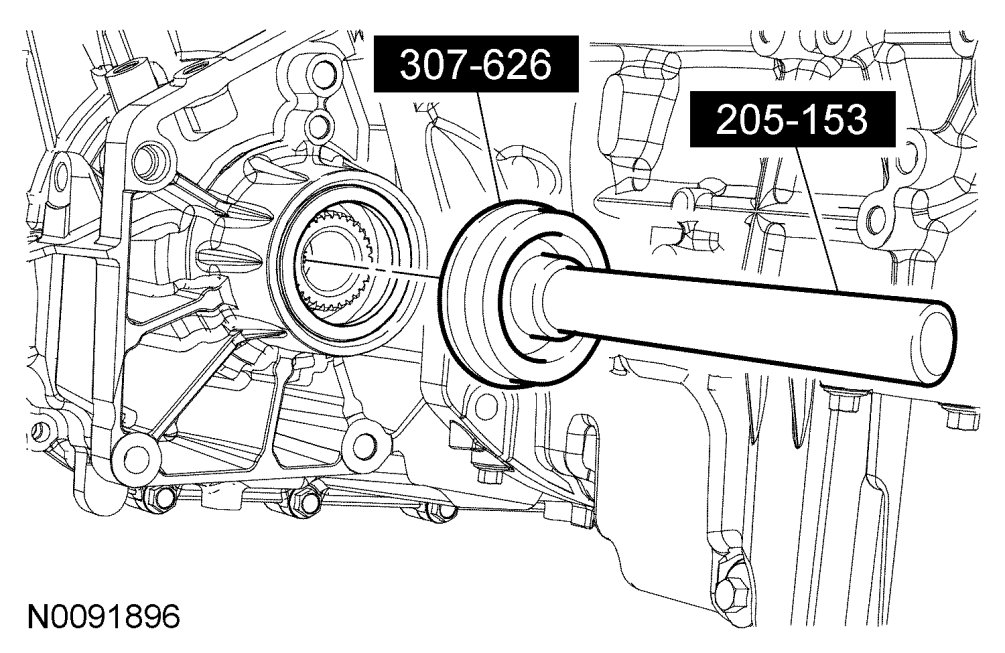

2. Using the Seal Installer and Handle, install the RH halfshaft seal.

3. Install the front RH halfshaft. See Front Axle / Front Drive Halfshafts Removal/Installation.

4. Fill with clean transaxle fluid to the correct level.
