Hybrid Drive Systems: Locations

HYBRID COMPONENT LOCATION AND IDENTIFICATION

This chart provides the location, description and basic function of the hybrid system components. Refer to the component location illustration.

NOTE: All High-voltage wires and harnesses are wrapped in orange-colored insulation.

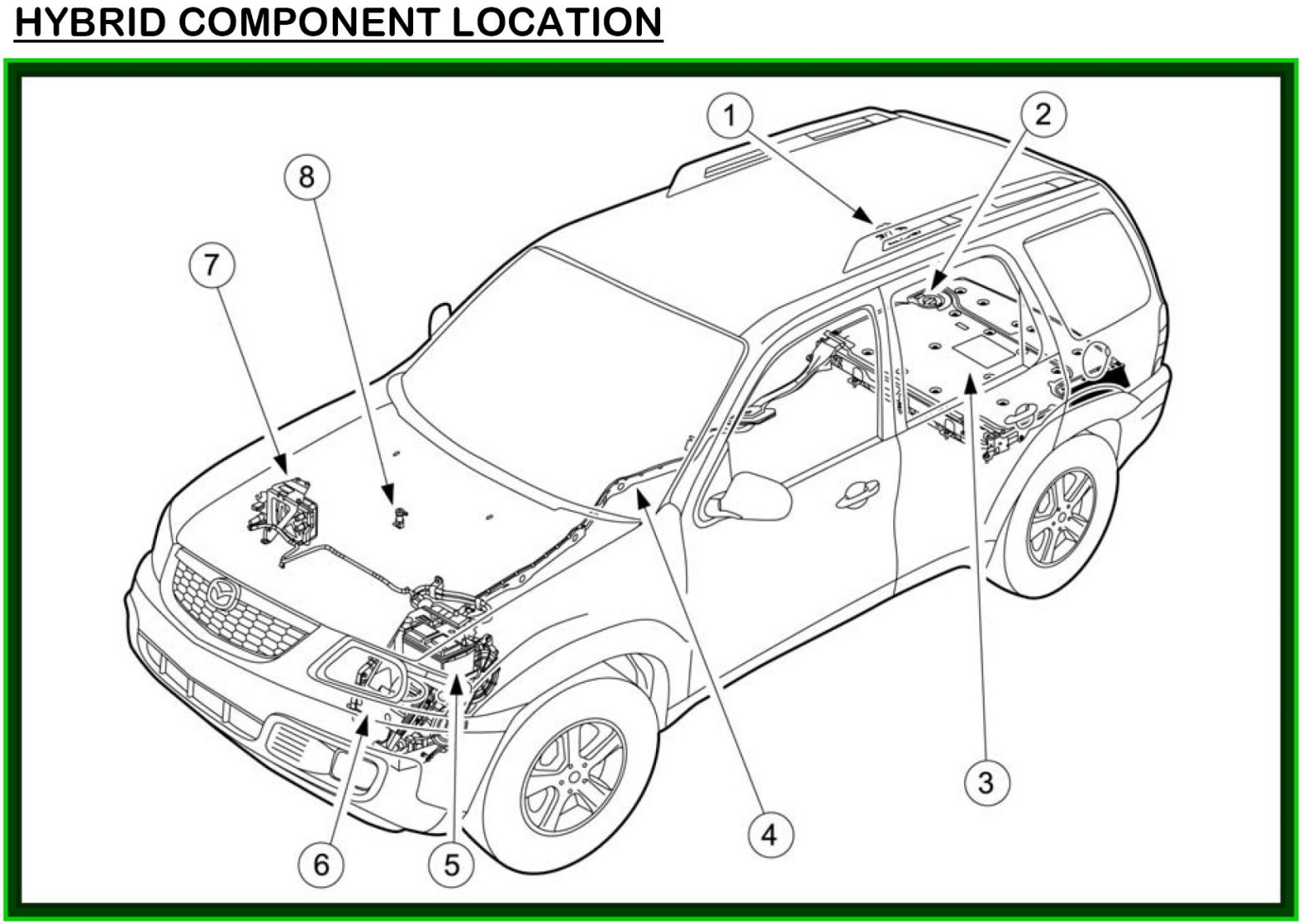

HYBRID COMPONENT LOCATION

- Warning decals, as shown here, will be located on components included in the high-voltage system.
