Radiator: Service and Repair



-
RADIATOR REMOVAL/INSTALLATION - 2.5L


















1. With vehicle in NEUTRAL, position it on a hoist. See Lifting.

2. Remove the cooling fan motor and shroud. See - Service and Repair.

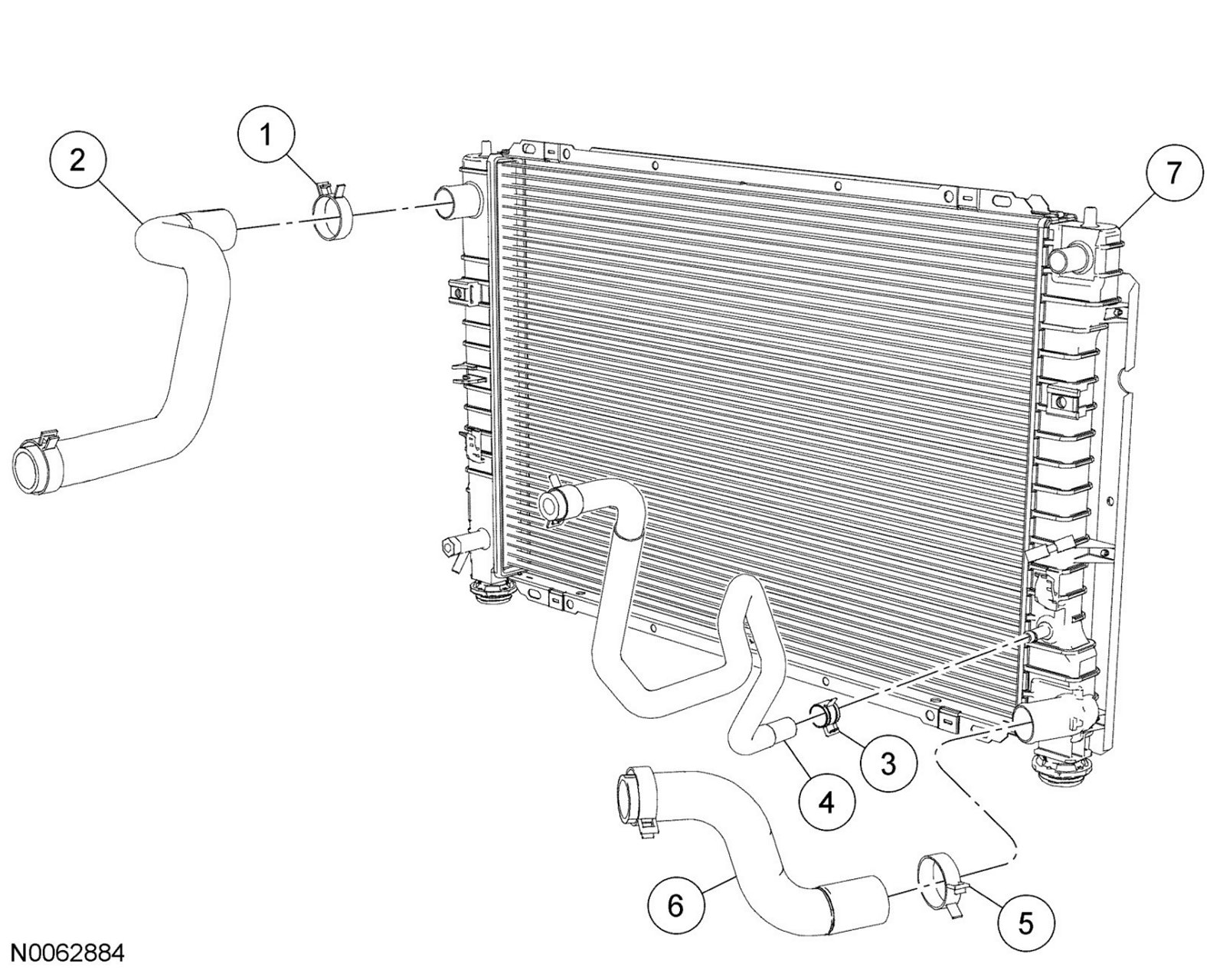

3. Disconnect the upper radiator hose from the radiator.

4. Disconnect the lower degas bottle-to-radiator hose from the radiator.

5. Disconnect the lower radiator hose from the radiator.

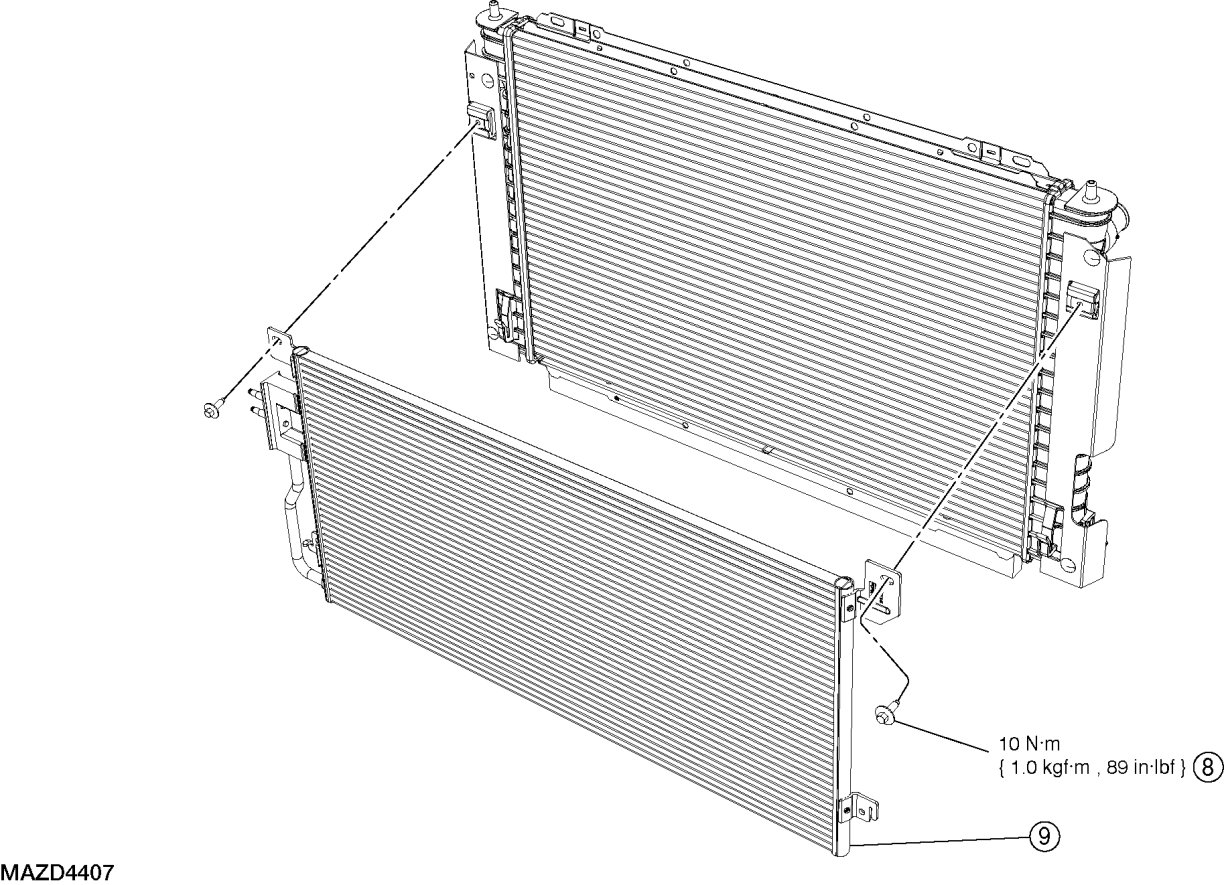

6. Remove the 2 A/C condenser-to-radiator bolts and position aside the A/C condenser from the radiator.

- To install, tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.

7. Remove the radiator.

8. To install, reverse the removal procedure.

9. Fill and bleed the cooling system. See - Service and Repair.
