Accelerator Pedal: Service and Repair
-

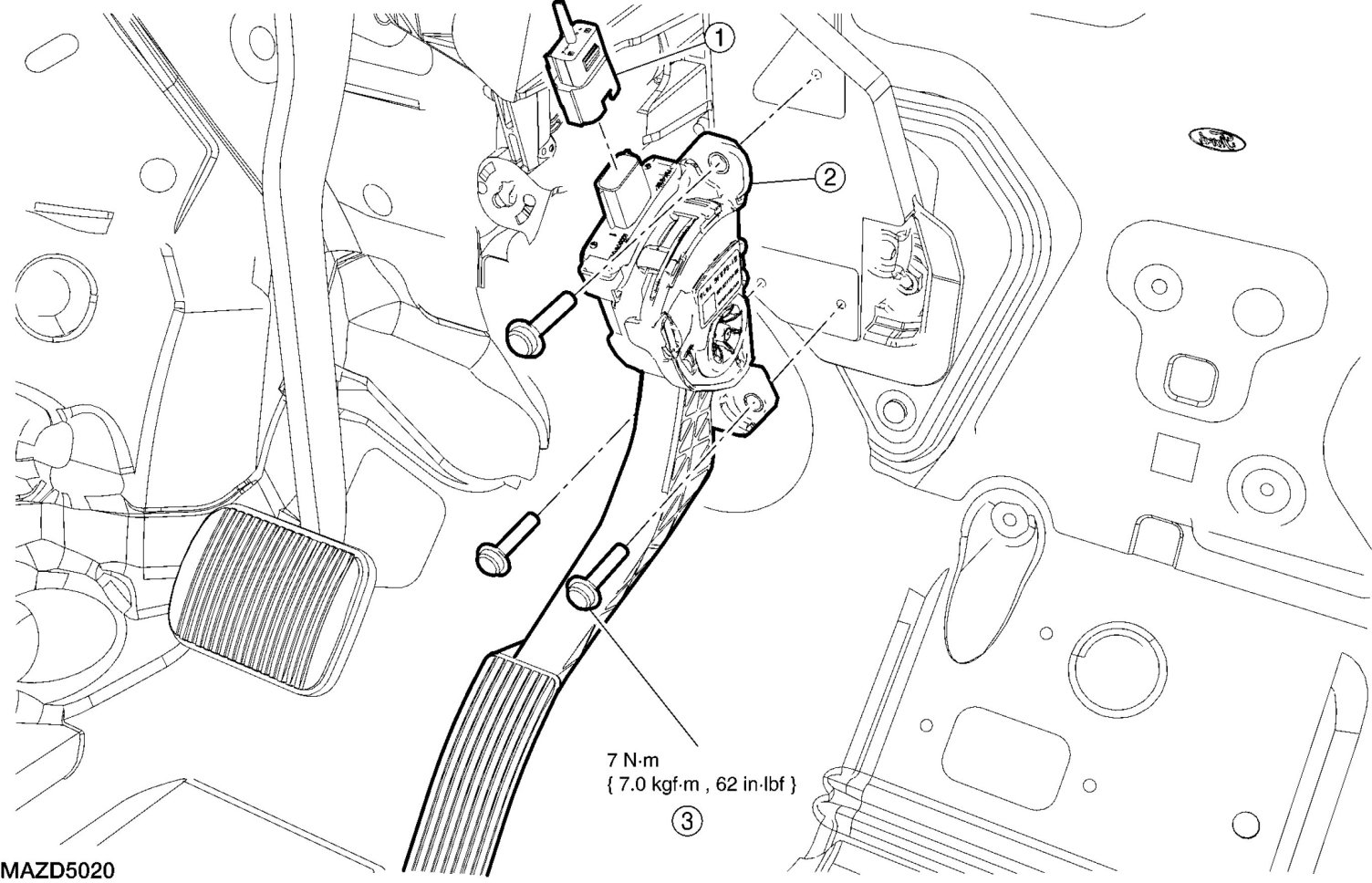

ACCELERATOR PEDAL REMOVAL/INSTALLATION - 3.0LNOTE:The
accelerator pedal bracket and bolts on the 2.5L and 3.0L vehicles are similar but not interchangeable with the 2.5L Hybrid vehicles.
1.
Remove the 3 bolts and the
accelerator pedal and sensor assembly.
-
To install, tighten to 7 Nm {7.0 kgf-m, 62 in-lbf}.
2.
To install, reverse the removal procedure.
