DTC Table [Engine]
DTC TABLE [LF, L5]
x: Applicable-: Not applicable

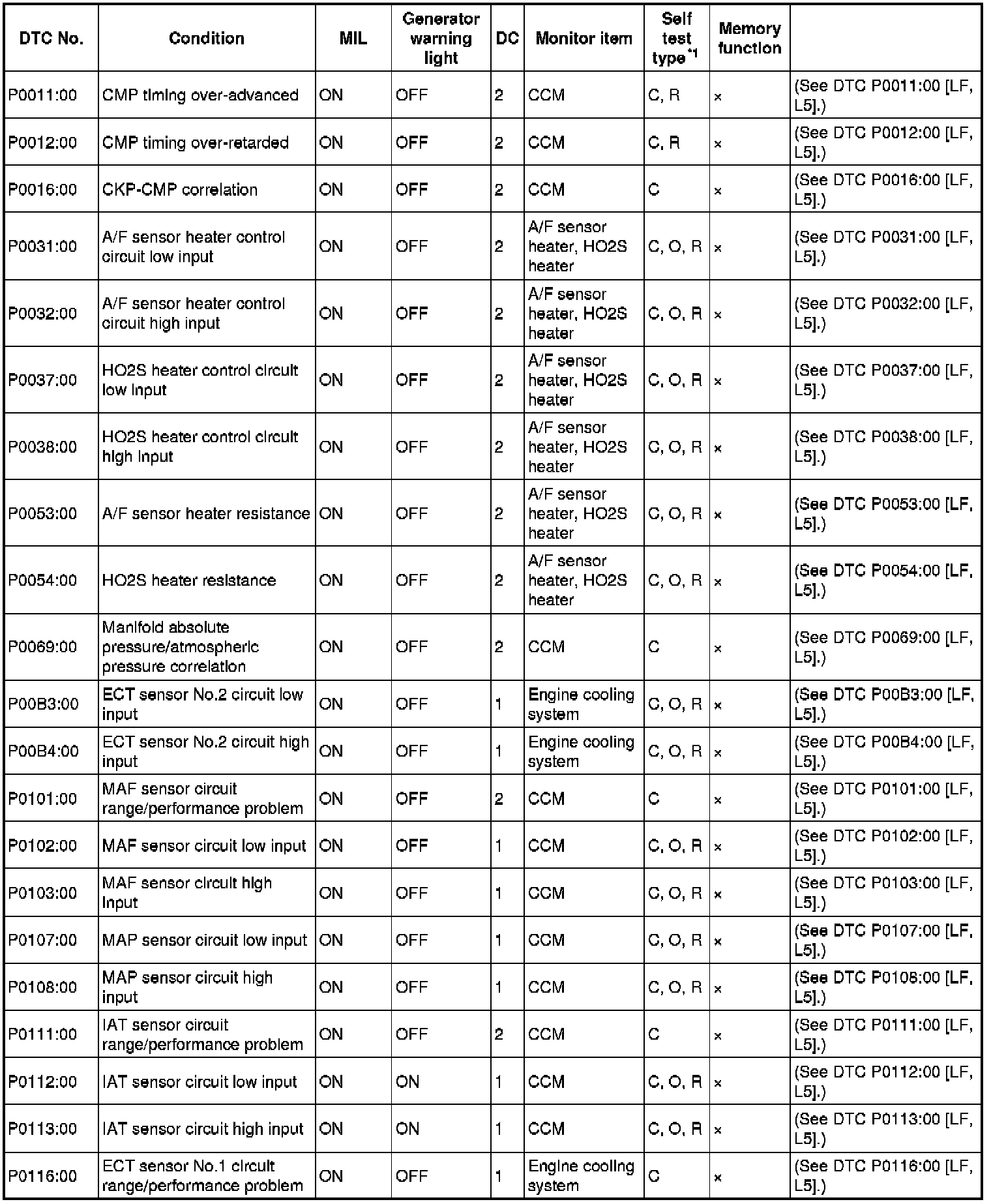

P0011:00-P0116:00 / P00B3:00-P00B4:00:

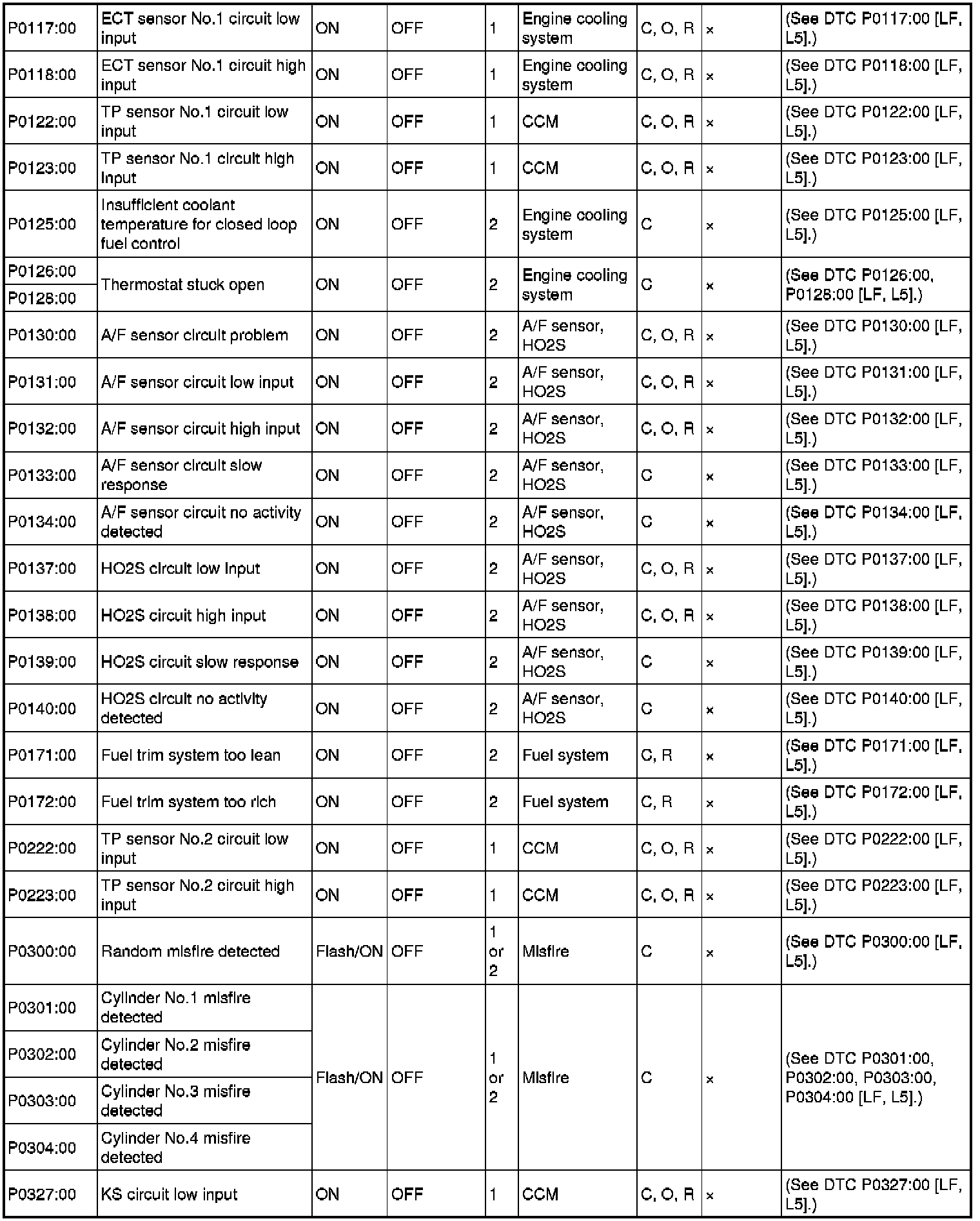

P0117:00-P0327:00:

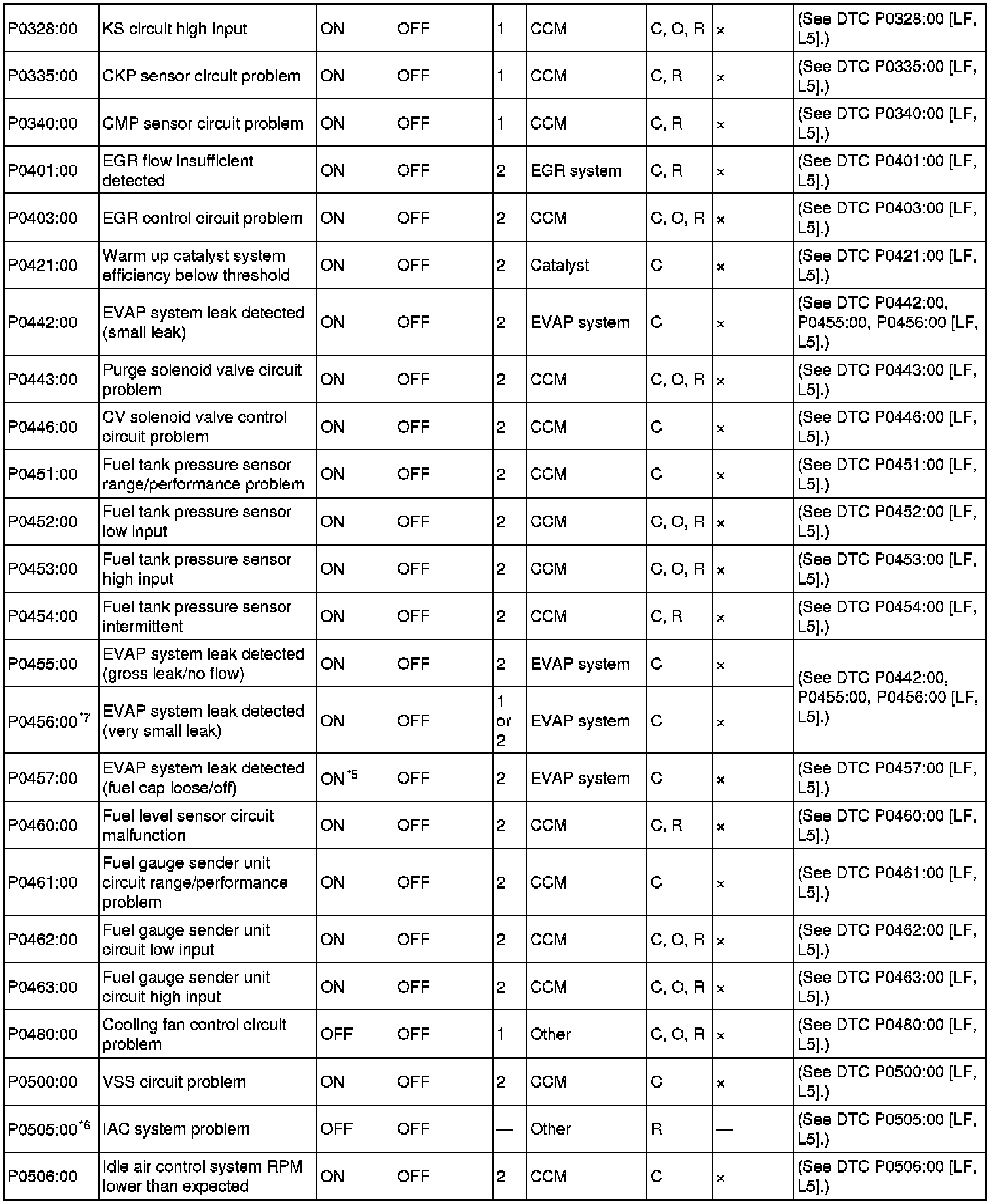

P0328:00-P0506:00:

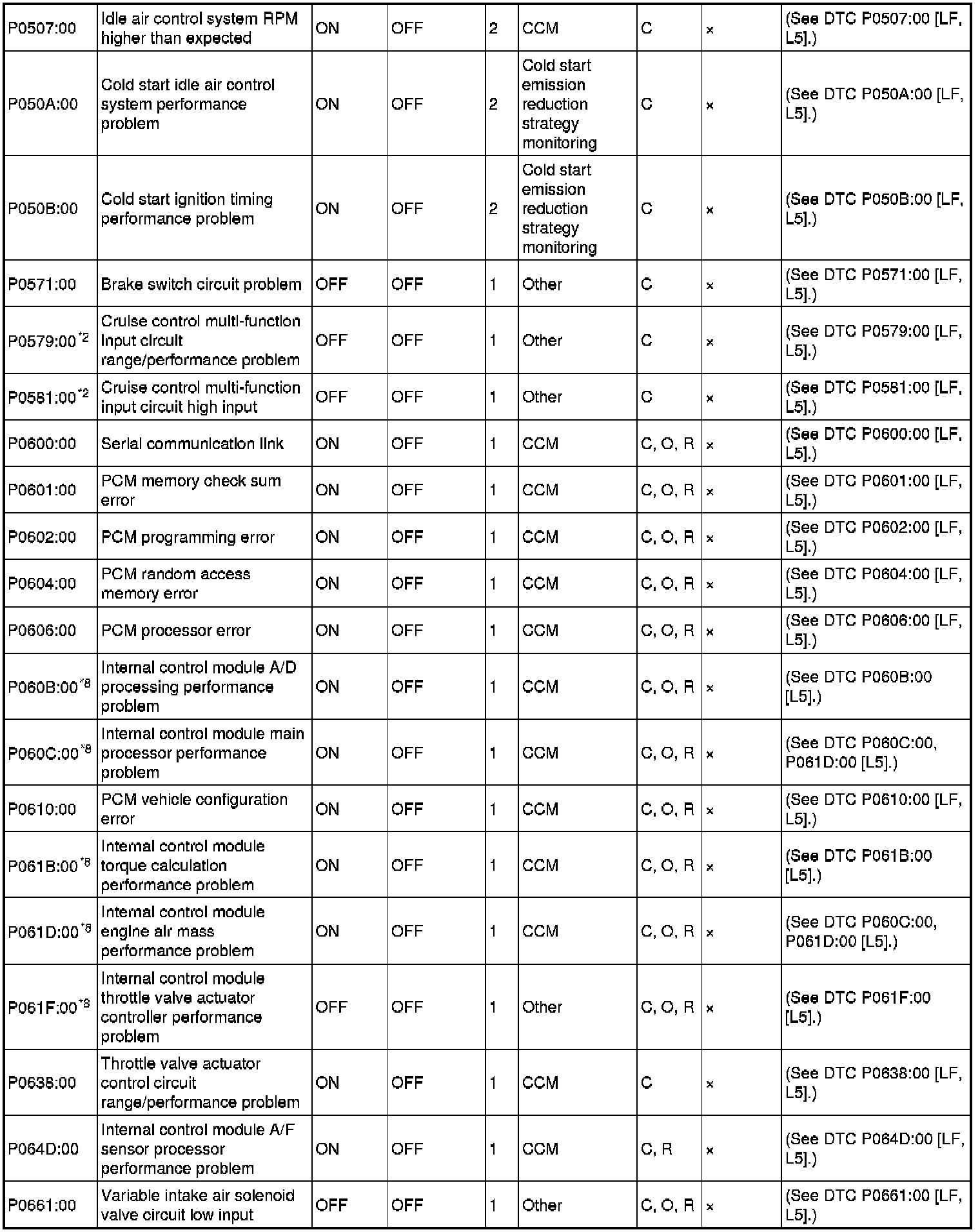

P0507:00-P0661:00 / P050A:00-P064D:00:

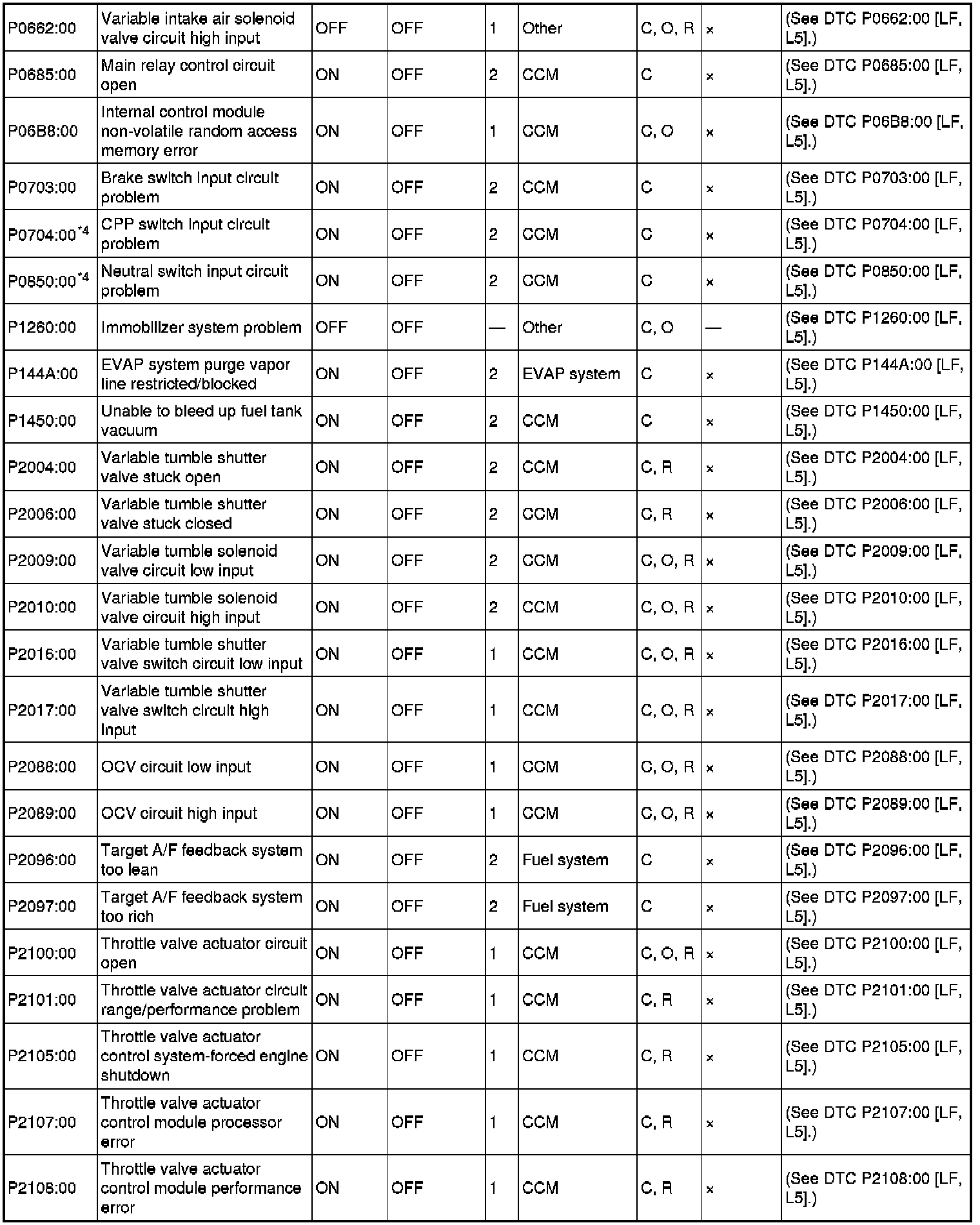

P0662:00-P2108:00 / P06B8:00-P144A:00:

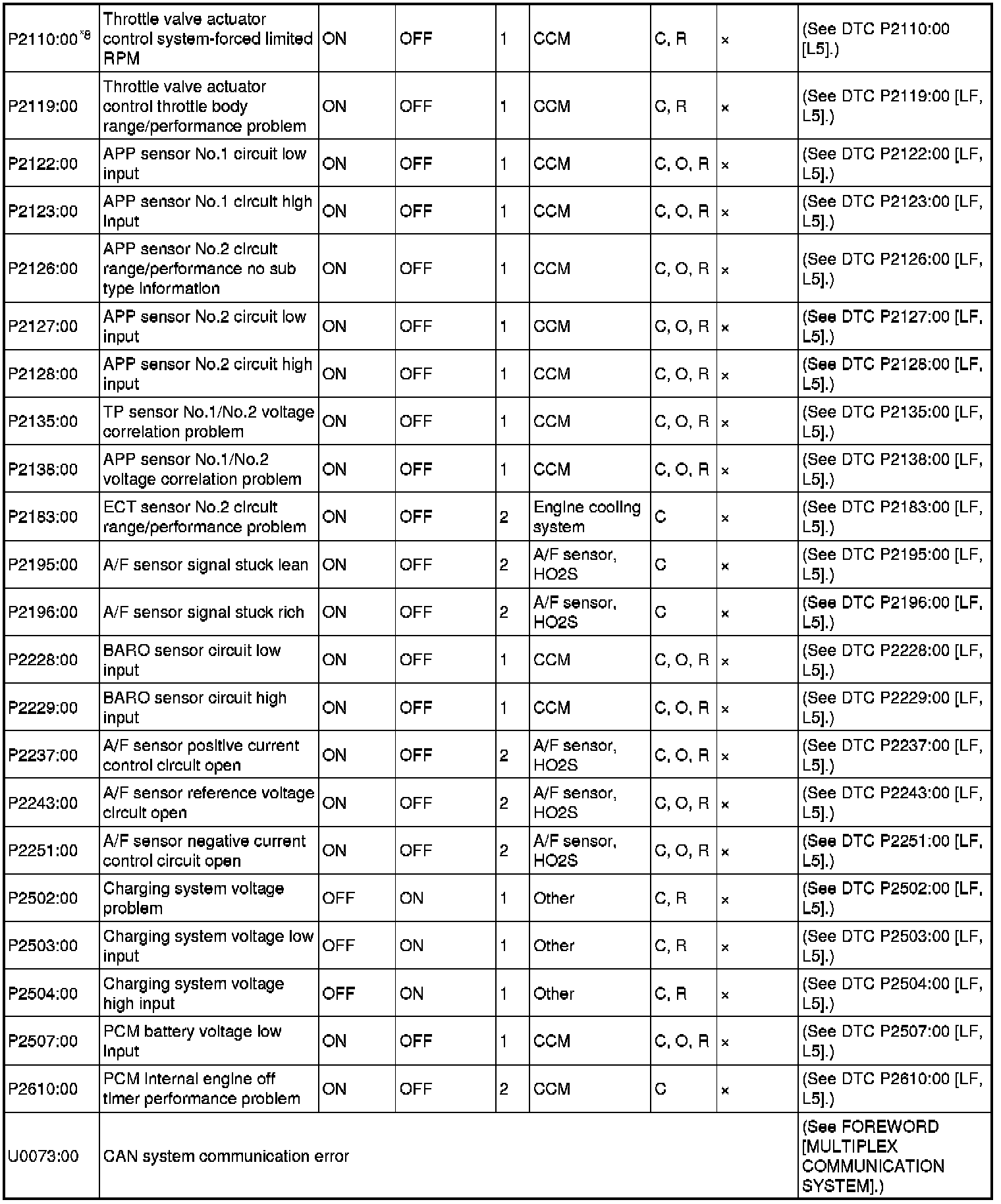

P2110:00-P2610:00 / U0073:00:
U0101:00-U3000:41:
*1
C: CMDTC self test, O: KOEO self test, R: KOER self test
*2
With cruise control system
*3
ATX
*4
MTX
*5
The fuel cap warning light illuminates
*6
KOER self test only
*7
California emission regulation applicable model
*8
L5
