Cylinder Block Inspection

CYLINDER BLOCK INSPECTION

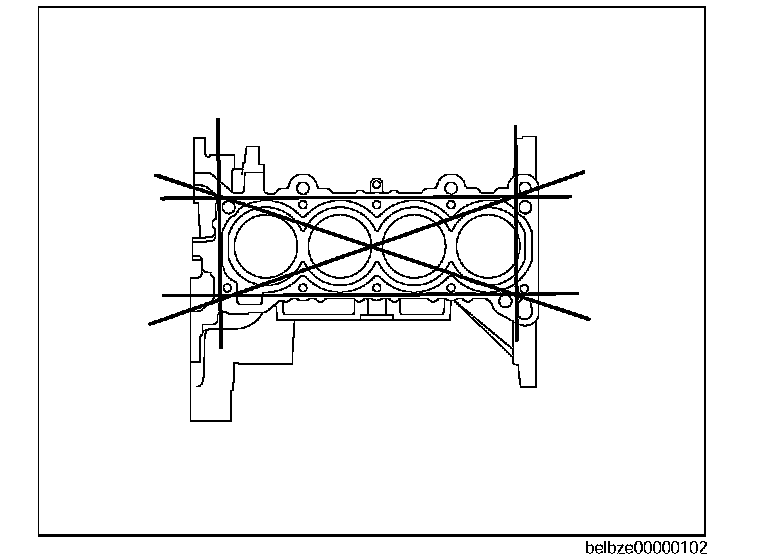

1. Measure the distortion of the cylinder block top surface in six directions as indicated in the figure.
^ If it exceeds the maximum, replace the cylinder block.

Maximum distortion, head gasket side
0.10 mm (0.0039 in)

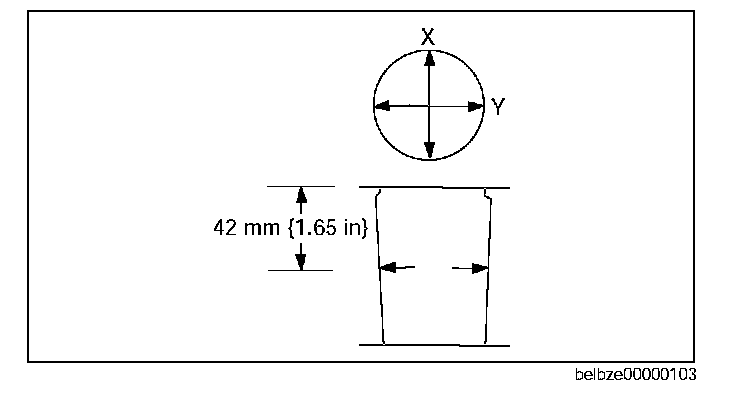

2. Measure the cylinder bores in X and Y directions at 42 mm (1.65 in) below the top surface.
^ If not within the specification, replace the cylinder block.

Maximum bore inner diameter
89.000-89.030 mm (3.5040-3.5051 in)
