No.4 No Temperature Control With Climate Control Unit




NO.4 NO TEMPERATURE CONTROL WITH CLIMATE CONTROL UNIT [FULL-AUTO AIR CONDITIONER]

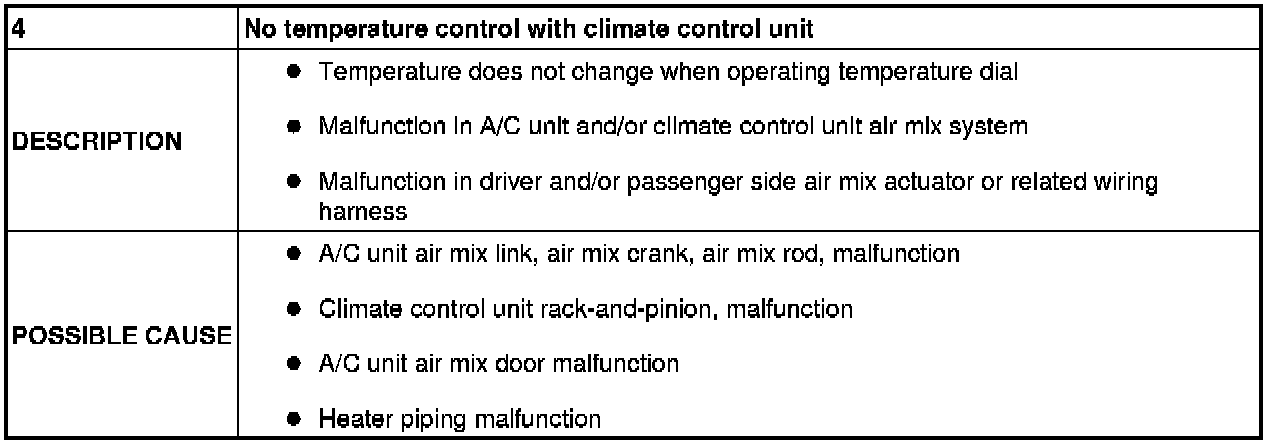

Description/Possible Cause:





- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, inspect to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
Diagnostic procedure

Step 1-Step 6:

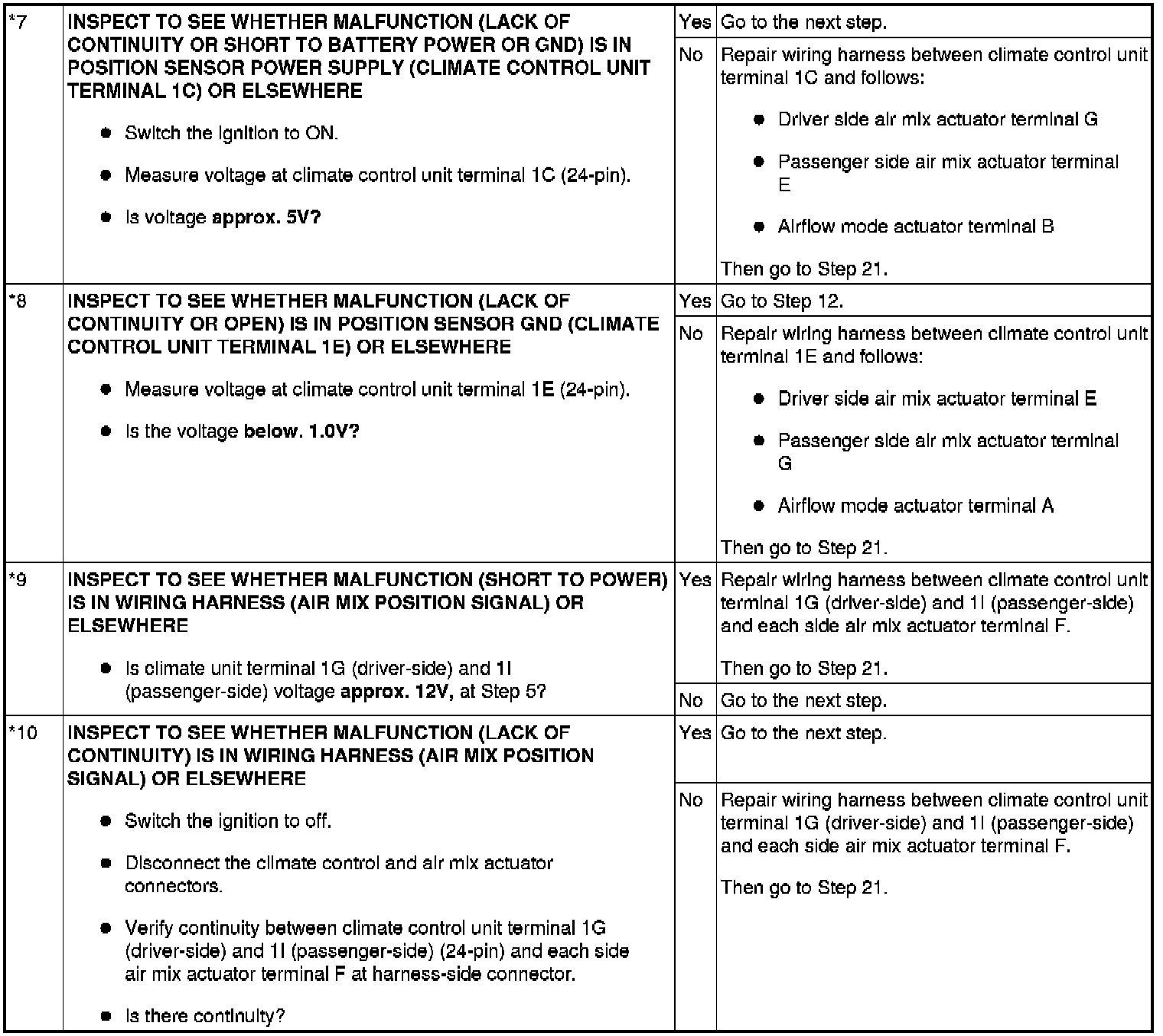

Step 7-10:





Step 11-Step 12:

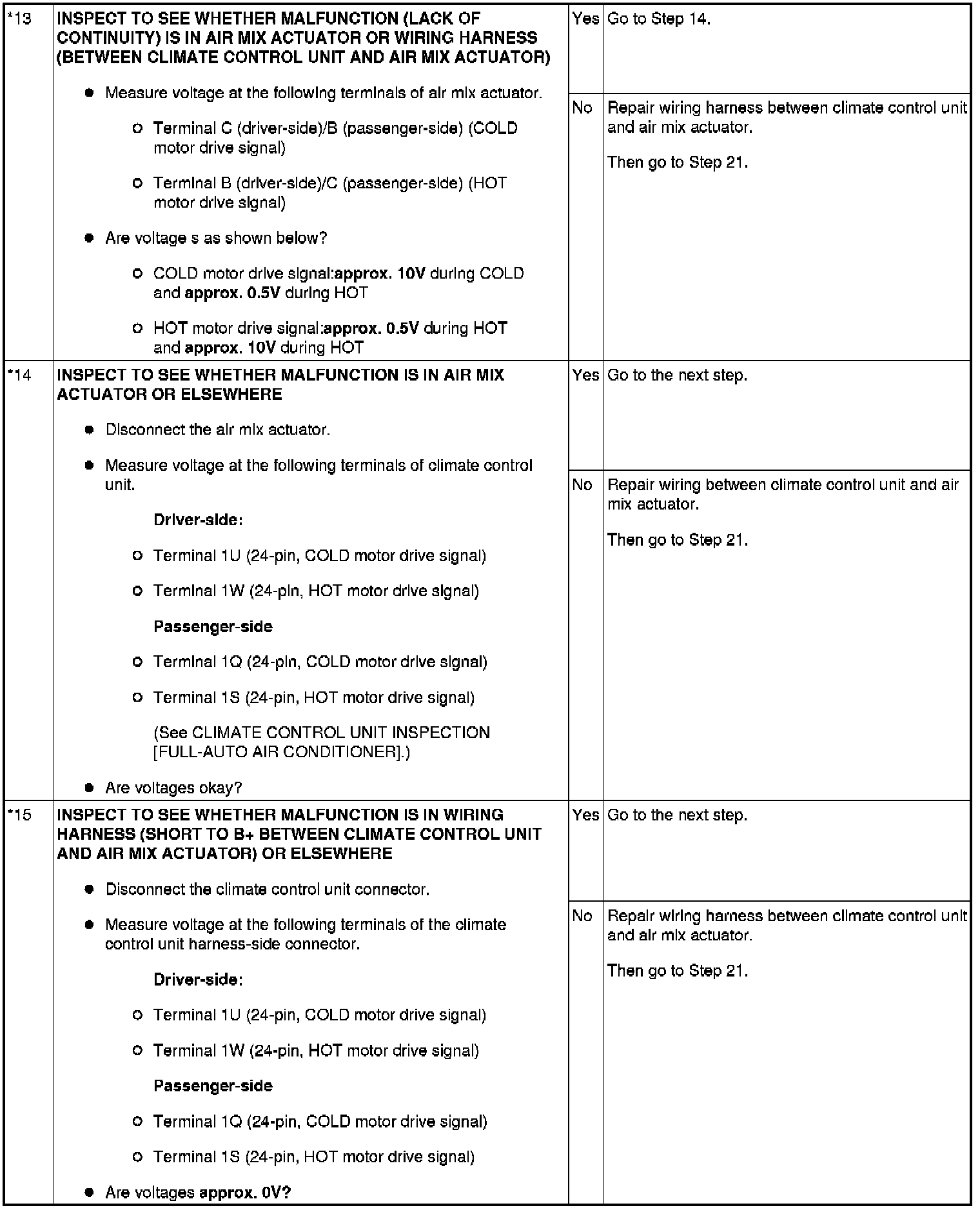

Step 13-Step 15:

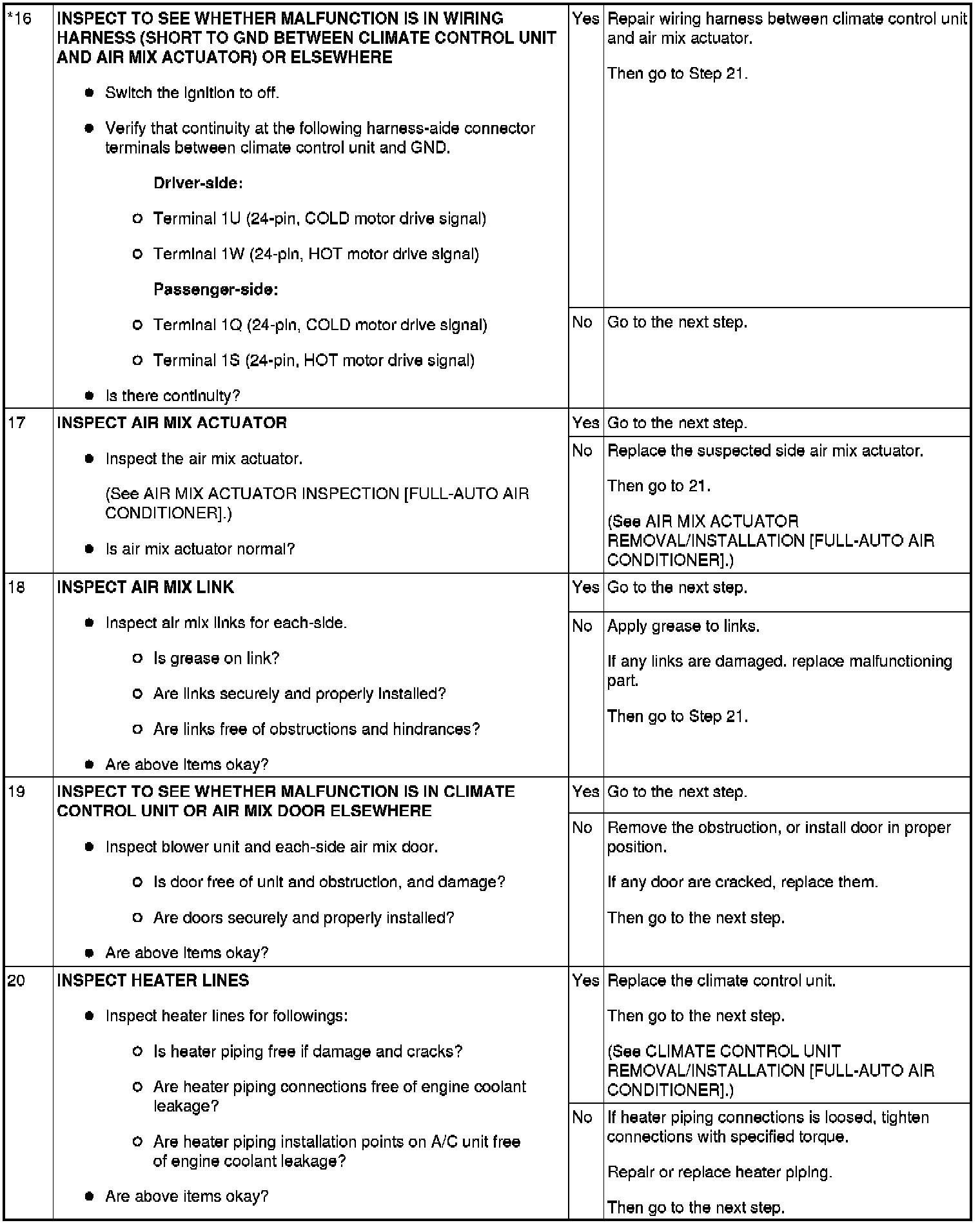

Step 16-Step 20:

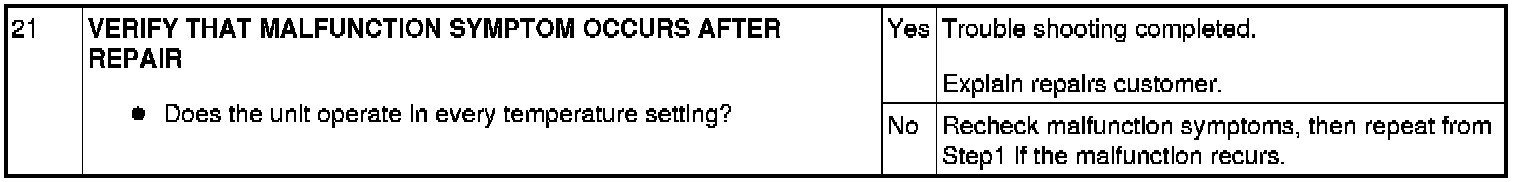

Step 21:
