Foot Light Removal/Installation




FOOT LIGHT REMOVAL/INSTALLATION

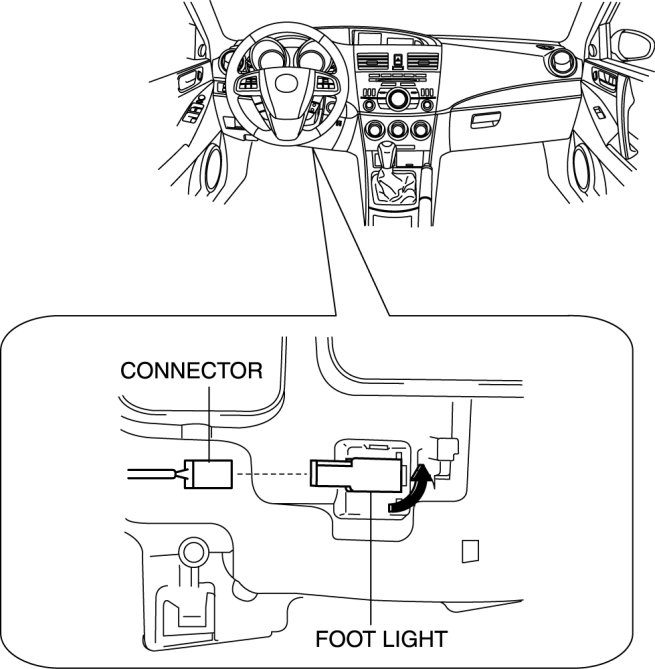

Driver-side

1. Disconnect the negative battery cable.

2. Disconnect the connector.

3. Rotate the front foot light in the direction of the arrow shown in the figure.






4. Remove the foot light.

5. Install in the reverse order of removal.

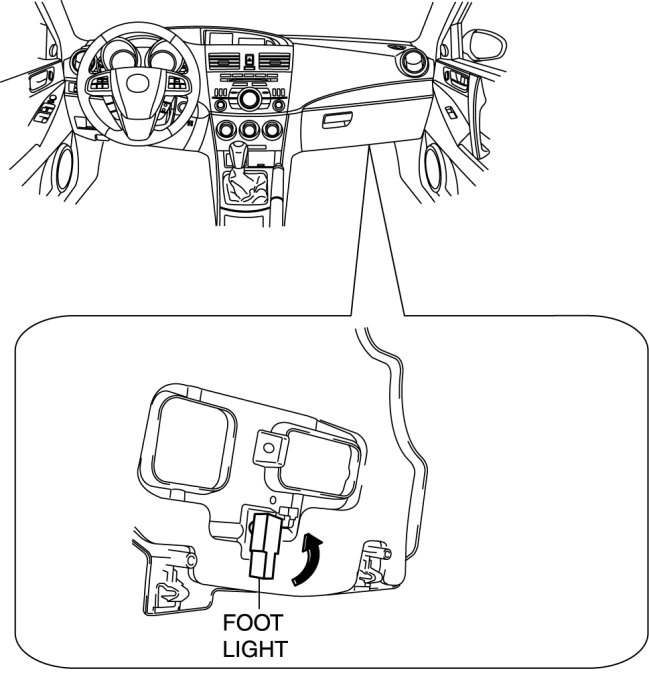

Passenger-side

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover. Dashboard Under Cover Removal/Installation

3. Rotate the front foot light in the direction of the arrow shown in the figure.






4. Remove the foot light.

5. Install in the reverse order of removal.
