Instruments - Service Reminder Reset Information
Bulletin No: 09-018/09Last Issued: 03/20/2009
Subject:
DIFFICULTIES SETTING THE MID SERVICE REMINDER (SERVICE DUE)
APPLICABLE MODEL(S)/VINS
2010 Mazda3
DESCRIPTION

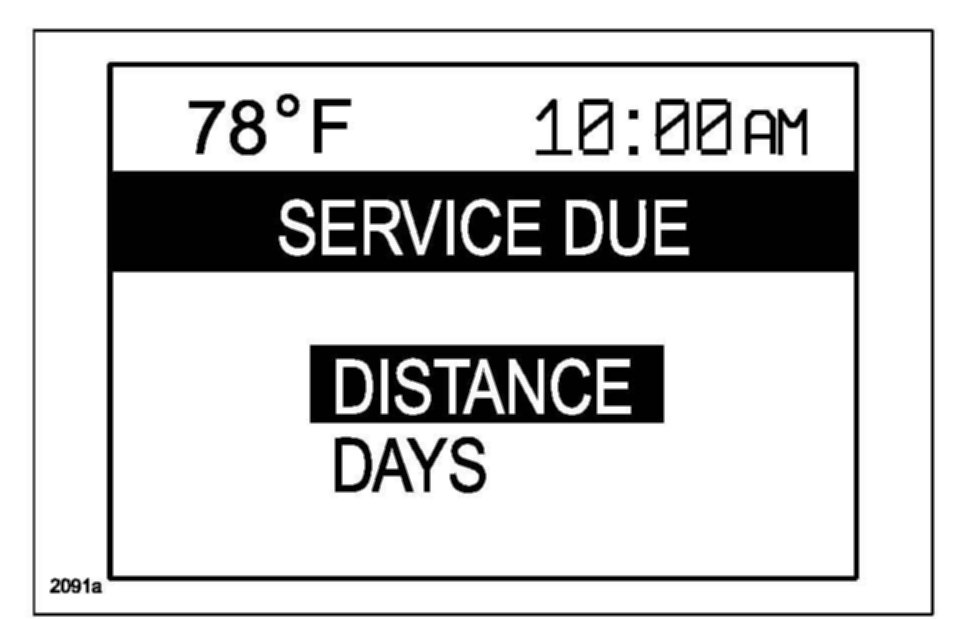

In order to set the service reminder, or "SERVICE DUE" as it appears in the MID display, the vehicle's clock must first be set. Therefore, vehicles with navigation must first receive signals from GPS satellites in order for the clock to set. This means the vehicle must be parked outside away from tall buildings and trees with an open view to the sky, and nothing blocking the GPS antenna located in the instrument cluster. It takes about two to five minutes for the vehicle to receive a signal once in an open area. Once the time is displayed, the service reminder can be set.
WARRANTY INFORMATION
NOTE:
^ At PDI, setting the service reminder in the MID is part of PDI.
^ Therefore, no additional time can be claimed.
^ During maintenance operation, setting the service reminder in the MID is part of the operation. Therefore, no additional time can be claimed.
