CLUTCH RELEASE COLLAR INSPECTION [G35M-R, G66M-R]

CAUTION:
- Do not clean the clutch release collar with cleaning fluids or a steam cleaner because it is filled with grease.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the battery component. (ex: battery, battery tray and PCM component) Removal and Replacement

4. Remove the air cleaner component. Service and Repair

5. Remove the exhaust manifold insulator installation bolts and set the exhaust manifold insulator aside.

6. Remove the following parts:
a. Exhaust manifold bracket Service and Repair

b. Front splash shield Splash Shield Removal/Installation

c. Aerodynamic under cover No.2 Aerodynamic Under Cover No.2 Removal/Installation

d. Starter Removal and Replacement

7. Drain the transaxle oil into a suitable container. Transaxle Oil Replacement [G35M-R] Transaxle Oil Replacement [G66M-R]

8. Remove the manual transaxle. Manual Transaxle Removal/Installation [G35M-R] Manual Transaxle Removal/Installation [G66M-R]

9. Remove the clutch release collar. Clutch Unit Removal/Installation [G35M-R, G66M-R]

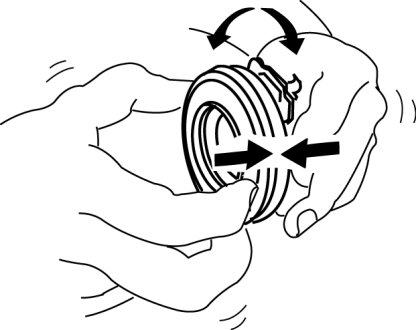

10. Turn the collar while applying force in the axial direction, and inspect for sticking, excessive resistance, and an abnormal noise.






- If there is any malfunction, replace the clutch release collar.

11. Install the clutch release collar. Clutch Unit Removal/Installation [G35M-R, G66M-R]
