3RD/4TH Clutch Hub Assembly Note

3rd/4th Clutch Hub Assembly Note





1. Install the synchronizer key springs in the clutch hub with the hooks in the grooves to hold the three synchronizer key in place.

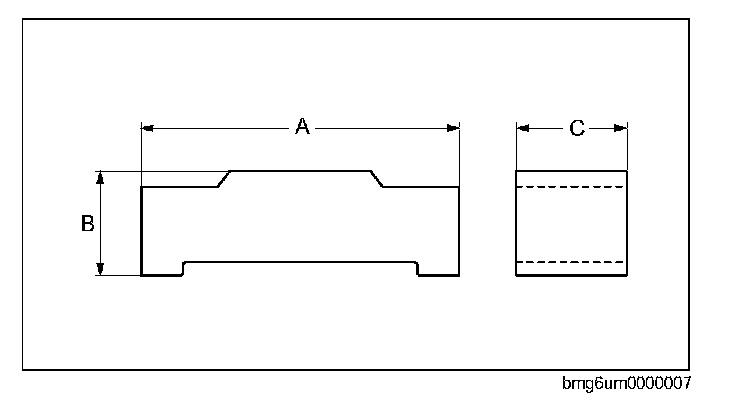

3rd/4th synchronizer key size
A: 17.0 mm (0.669 in)
B: 4.25 mm (0.167 in)
C: 5.0 mm (0.20 in)

2. Align the synchronizer ring grooves with the synchronizer key during assembly.
