1ST/2ND Clutch Hub Assembly Note
1st/2nd Clutch Hub Assembly Note 1.
Install the synchronizer key springs in the clutch hub with the hooks in the grooves to hold the three synchronizer keys in place.

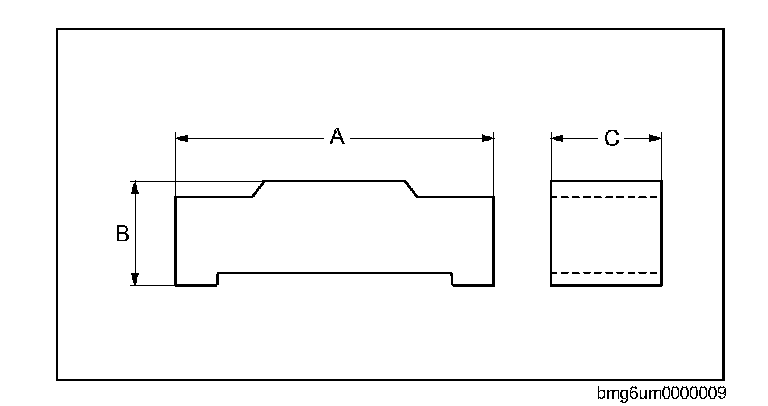

1st/2nd synchronizer key size
A: 19.0 mm (0.748 in)
B: 4.25 mm (0.167 in)
C: 5.0 mm (0.20 in)
