Cellular Phone: Service and Repair




HANDS-FREE TELEPHONE (HF/TEL) UNIT REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Selector lever knob (ATX) Front Console Removal/Installation

c. Shift lever knob (MTX) Front Console Removal/Installation

d. Center console (Vehicles with rear vent) Center Console Removal/Installation

e. Front console Front Console Removal/Installation

f. Front scuff plate inner (passenger's side) Front Scuff Plate Removal/Installation

g. Front side trim (passenger's side) Front Side Trim Removal/Installation

h. Side panel (passenger's side) Side Panel Removal/Installation

i. Glove compartment Service and Repair

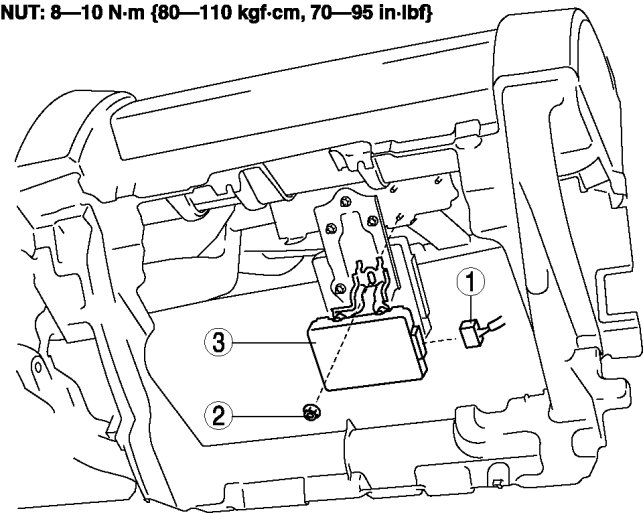

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
