Trunk / Liftgate: Service and Repair




LIFTGATE REMOVAL/INSTALLATION

WARNING:
- When removing the stay damper, serious injury may occur if the stay damper is removed without supporting the liftgate. Always perform the procedure with at least another person.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the rear header trim. Rear Header Trim Removal/Installation

4. Disconnect the rear washer hose.

5. Disconnect the liftgate wiring harness connector.

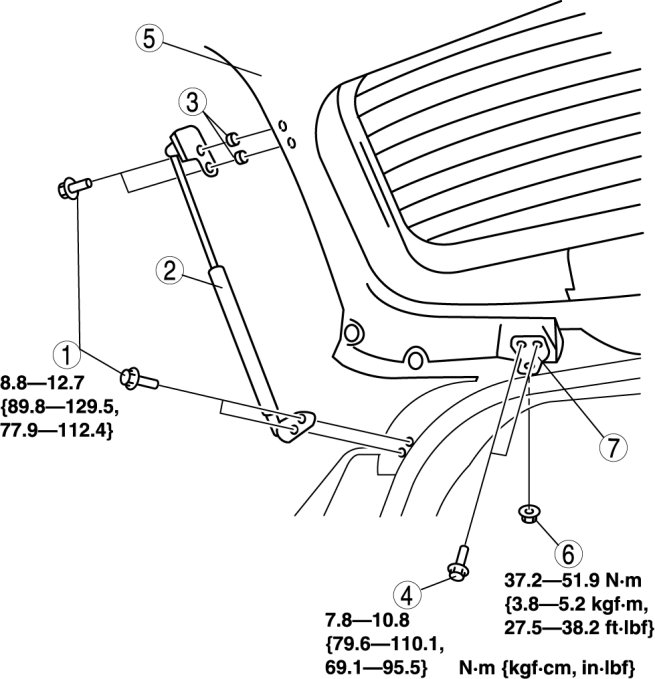

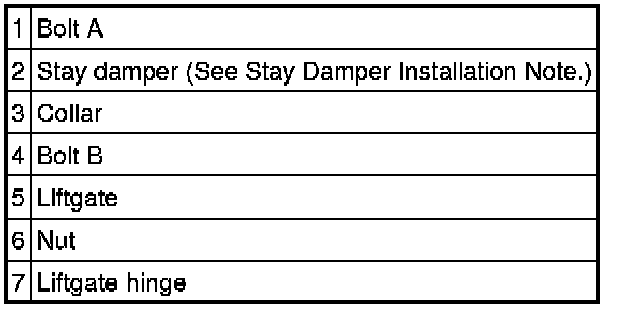

6. Remove in the order indicated in the figure.










7. Install in the reverse order of removal.

8. Adjust the liftgate. Adjustments

Stay Damper Installation Note

CAUTION:
- If a stay damper is installed without installing a collar, the stay damper could come off causing the liftgate to fall. When installing the stay damper, always install a collar.
