Exterior Moulding / Trim: Service and Repair

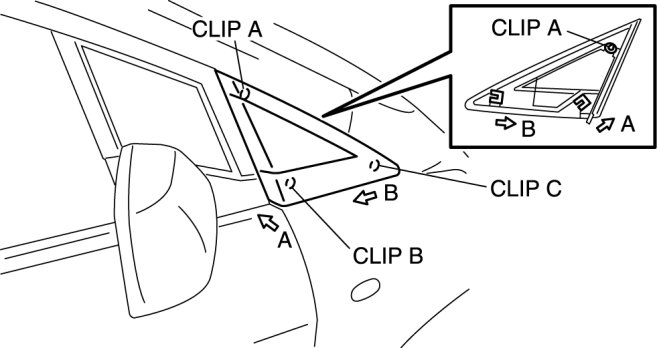

SAIL GARNISH REMOVAL/INSTALLATION 1.
Remove clip A from the vehicle.
2.
Move the sail garnish in direction A and remove it from clip B.
3.
Move the sail garnish in direction B and remove from clip C.
4.
Remove clips B and C from the vehicle body.
5.
The clip B and C must be installed to the sail garnish when installing the sail garnish.
6.
Install in the reverse order of removal.
