Front Fender: Service and Repair




FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Windshield wiper arm and blade Windshield Wiper Arm and Blade Removal/Installation

b. Cowl grille Cowl Grille Removal/Installation

c. Front bumper Removal and Replacement

d. Front combination lights Front Combination Light Removal/Installation

e. Side step molding

f. Sail garnish Service and Repair

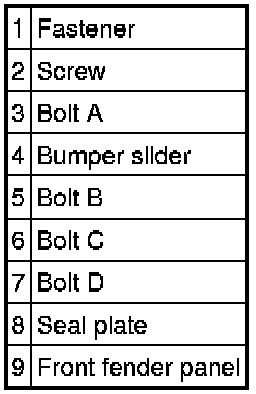

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
