Clock: Testing and Inspection

CLOCK SWITCH INSPECTION

Clock switch

NOTE:
- Clock switch built with the hazard warning switch.

1. Disconnect the negative battery cable.

2. Remove the clock switch. Service and Repair

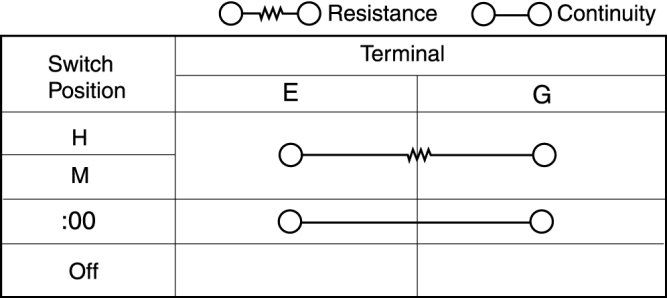

3. Verify continuity and resistance between the clock switch terminals.






- If the continuity and resistance is not as specified, replace the clock switch.

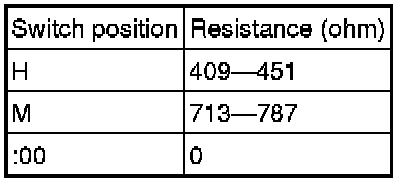

Between the terminal E-G resistance.





4. Connect the positive battery to the clock switch terminal A, the negative battery to the clock switch terminal H.

5. Verify the LED illuminates.

- If there is any malfunction, replace the clock switch.
