Backup Lamp Switch: Service and Repair

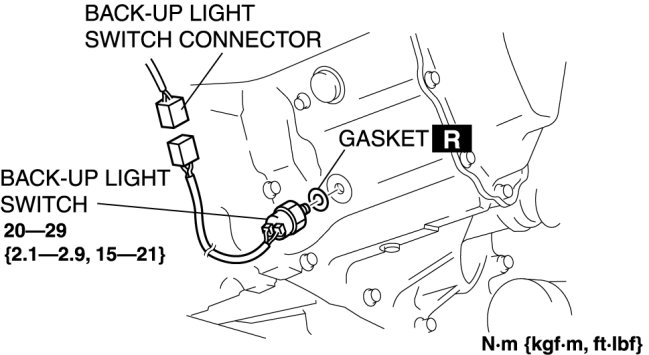

BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the under cover.

4. Drain the oil.(See Transaxle Oil Replacement.)

5. Disconnect the back-up light switch connector and remove the back-up light switch.

6. Install in the reverse order of removal.

7. Refill the oil.(See Transaxle Oil Replacement.)
