Fog/Driving Lamp Bulb: Service and Repair




FRONT FOG LIGHT BULB REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the fasteners and slightly bend back the mudguard.

4. Disconnect the front fog light connector.

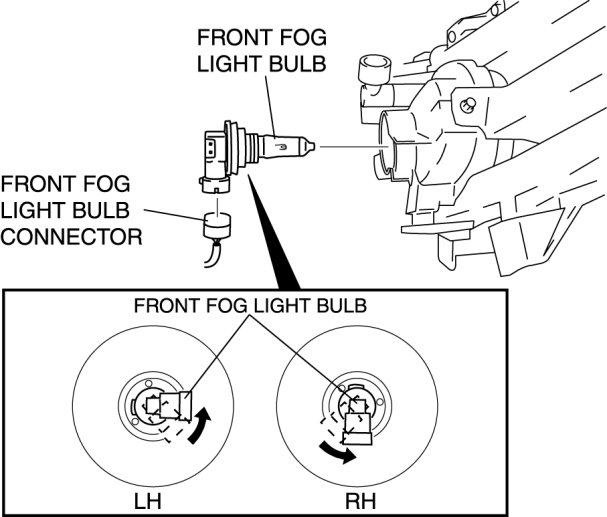

5. Remove the front fog light bulb by turning it in the direction shown by the arrow.

CAUTION:
- A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When handling the bulb, hold the flange, not the glass.

6. Install in the reverse order of removal.
