Headlamp Alignment Switch: Service and Repair




HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Front scuff plate inner (driver's side) Front Scuff Plate Removal/Installation

b. Front side trim (driver's side) Front Side Trim Removal/Installation

c. Side wall Side Wall Removal/Installation

d. Center console (Vehicles with rear vent) Center Console Removal/Installation

e. Selector lever knob (ATX) Front Console Removal/Installation

f. Shift lever knob (MTX) Front Console Removal/Installation

g. Front console Front Console Removal/Installation

h. Hood release lever Service and Repair

i. Lower panel Lower Panel Removal/Installation

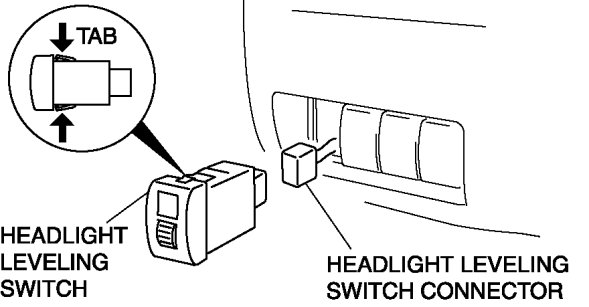

4. Press the tabs from the inner side of the lower panel, pull the headlight leveling switch outward, and then remove it.






5. Install in the reverse order of removal.
