Tail Lamp: Service and Repair

REAR COMBINATION LIGHT REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Rear package tray lid Service and Repair

b. Sub-trunk Service and Repair

c. Third-row seat Third-Row Seat Removal/Installation

d. Rear scuff plate Rear Scuff Plate Removal/Installation

e. Trunk end trim Trunk End Trim Removal/Installation

f. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

g. Cargo compartment light Service and Repair

h. Trunk side trim

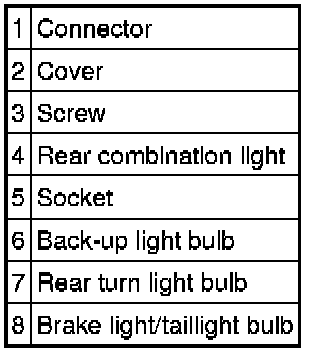

4. Remove in the order indicated in the table.

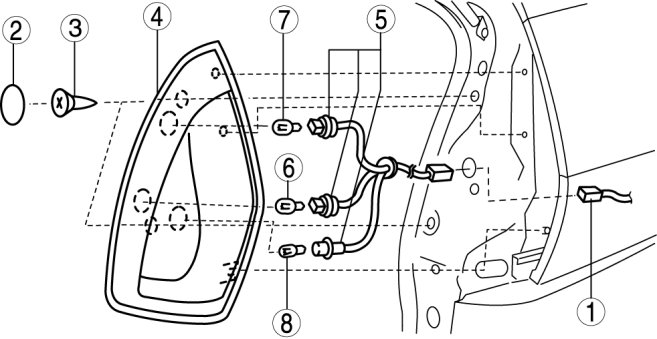

LED type

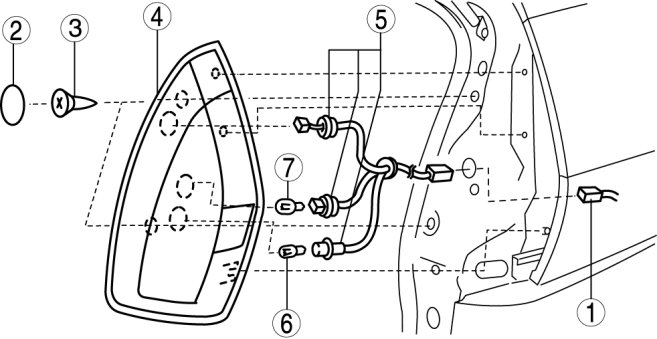

Light bulb type










5. Install in the reverse order of removal.
