Front Door Quarter Glass Removal/Installation




FRONT DOOR QUARTER GLASS REMOVAL/INSTALLATION

1. Fully open the front door glass.

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable.

4. Remove the inner garnish. Inner Garnish Removal/Installation

5. Remove the front door trim. Front Door Trim Removal/Installation

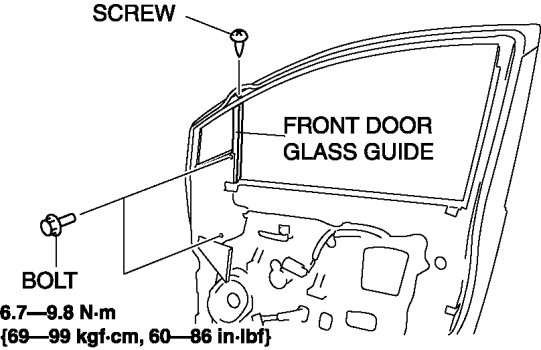

6. Remove the bolts and screw.






7. Remove the front door glass guide and glass run channel as a single unit.

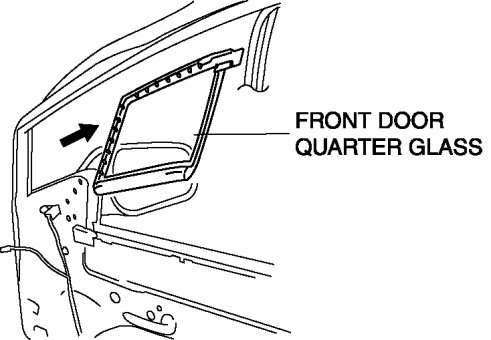

8. Remove the front door quarter glass.






9. Install in the reverse order of removal.
