Sliding Door Glass Removal/Installation




SLIDING DOOR GLASS REMOVAL/INSTALLATION

1. Fully open the sliding door glass.

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable.

4. Remove the side door garnish. Side Door Garnish Removal/Installation

5. Remove the rear side trim. Rear Side Trim Removal/Installation

6. Remove the sliding door trim. Sliding Door Trim Removal/Installation

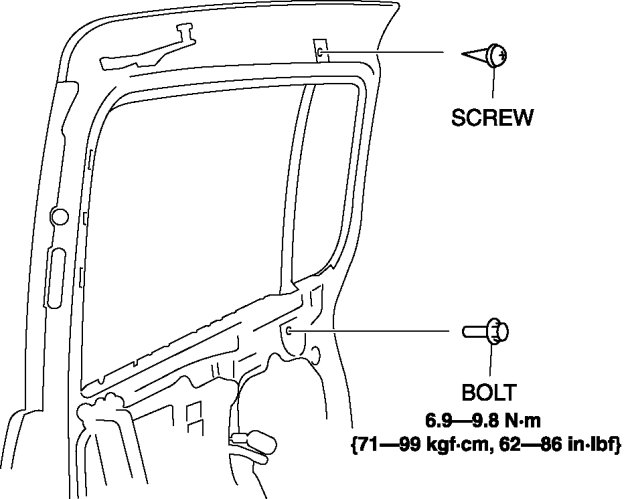

7. Remove the bolt and screw.






8. Remove the sliding door glass guide and glass run channel as a single unit.






9. Connect the negative battery cable.

10. Connect the power window subswitch connector.

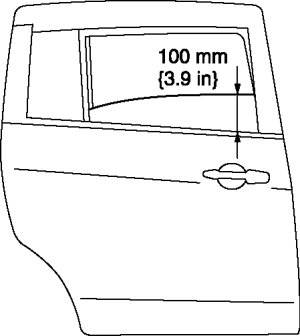

11. Adjust the sliding door glass position as shown in the figure.

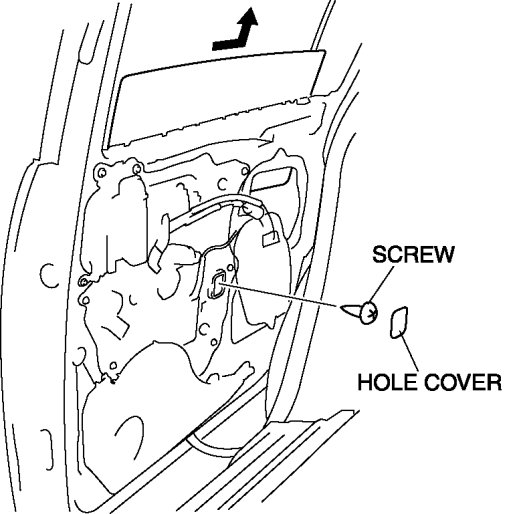

12. Remove the hole cover.

13. Remove the screw.






14. Lift the sliding door glass up and remove it by sliding it to the vehicle rear.

15. Install in the reverse order of removal.
