Sliding Door Quarter Glass Removal/Installation




SLIDING DOOR QUARTER GLASS REMOVAL/INSTALLATION

1. Fully open the sliding door glass.

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable.

4. Remove the following parts:
a. Sliding door garnish

b. Side door garnish Side Door Garnish Removal/Installation

c. Rear side trim Rear Side Trim Removal/Installation

d. Sliding door trim Sliding Door Trim Removal/Installation

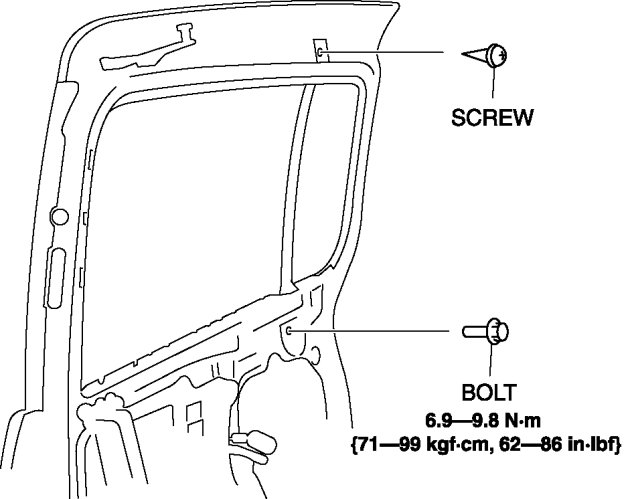

5. Remove the bolt and screw.

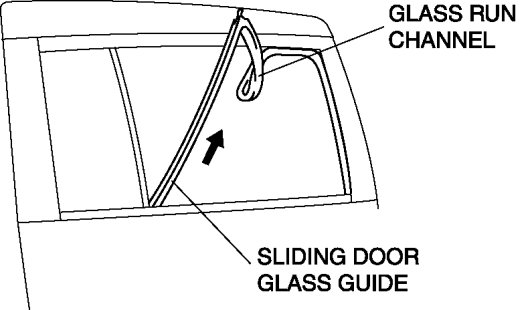

6. Remove the sliding door glass guide and glass run channel as a single unit.

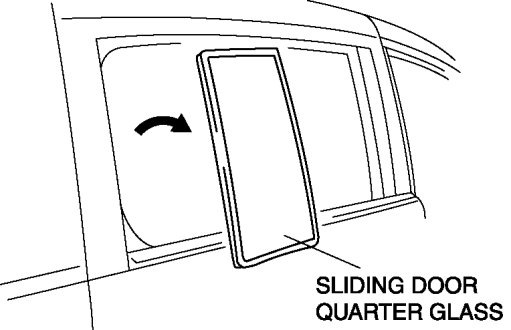

7. Remove the sliding door quarter glass.






8. Install in the reverse order of removal.
