Auto-Dimming Mirror Installation




AUTO-DIMMING MIRROR INSTALLATION

Vehicles With Rain Sensor

1. Install the auto-dimming mirror.






2. Install the screw.

3. Connect the auto-dimming mirror connector.

4. Install the rain sensor. Service and Repair

5. Install the rain sensor cover. Service and Repair

6. Connect the negative battery cable.

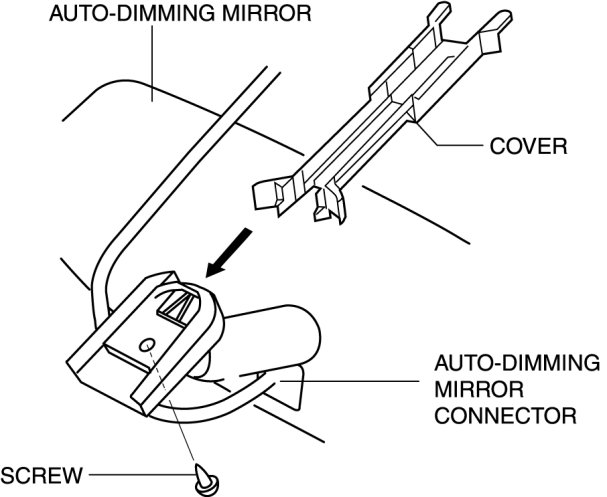

Vehicles Without Rain Sensor

1. Install the auto-dimming mirror.






2. Install the screw.

3. Connect the auto-dimming mirror connector.

4. Install the cover.

5. Connect the negative battery cable.
